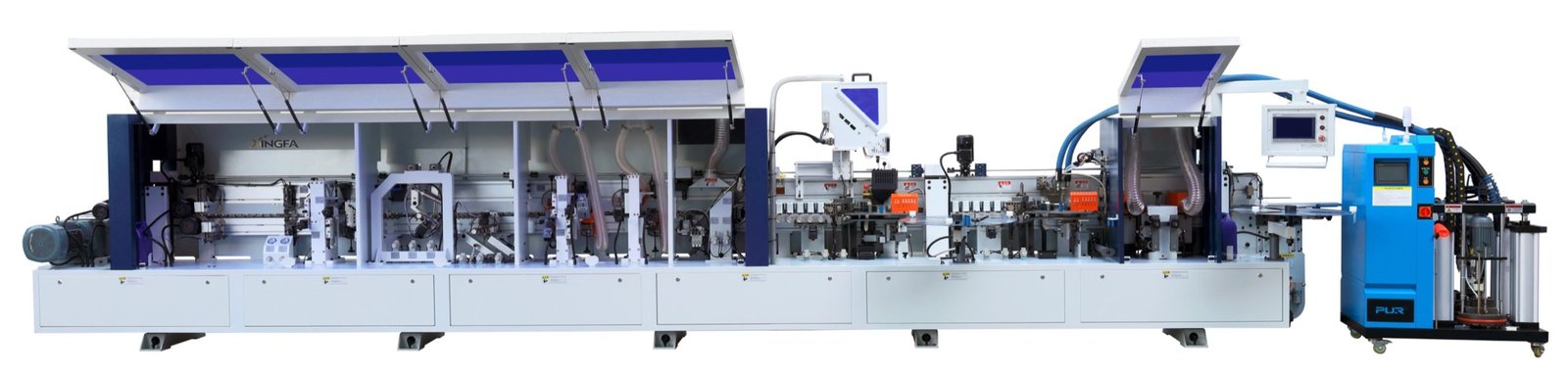

XA-6CTA-PUR Automatic Edge Banding Machine

01

Pre-milling

Designed to mill away surface burrs, ensuring tight band contact and improved edge bonding performance.

02

Heating Lamp 1

The infrared heating lamp preheats the panel to improve bonding strength.

03

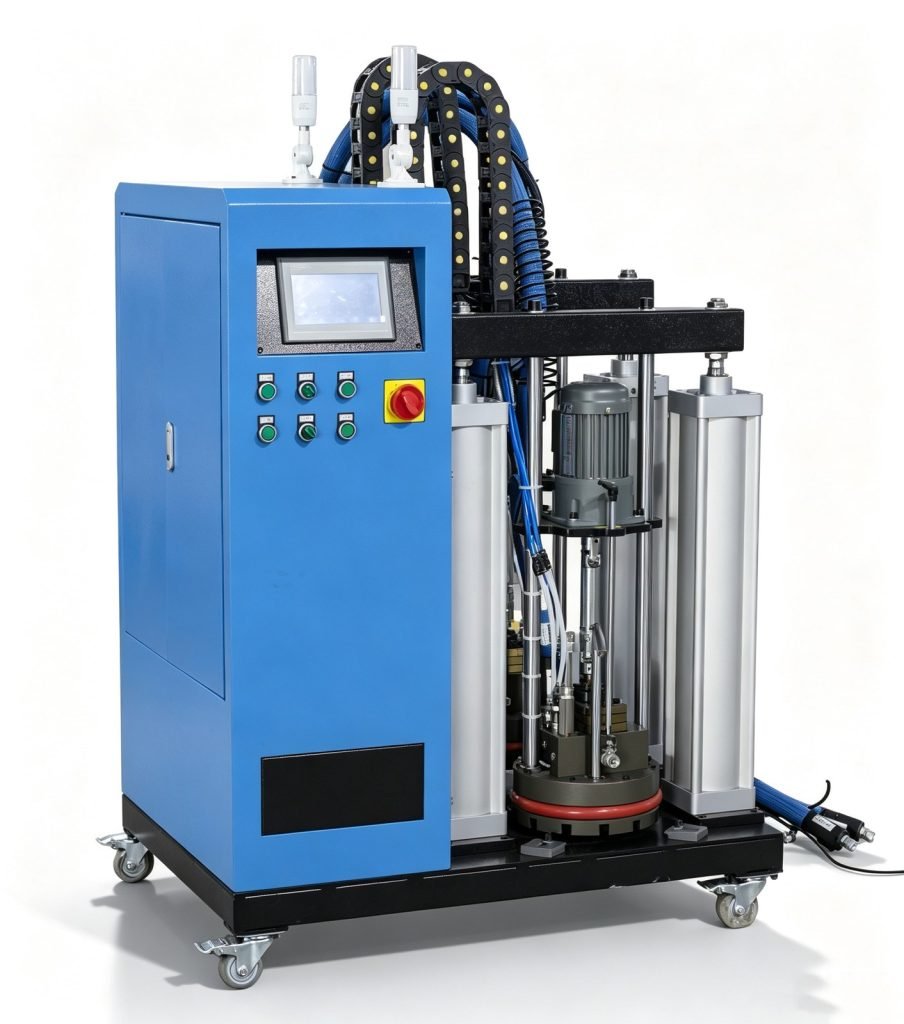

PUR Gluing

The quantitative PUR system dispenses a precise amount of glue, reduces waste and creates a fine, nearly invisible glue line.

04

Heating Lamp 2

The infrared heating lamp preheats the panel to improve bonding strength.

05

Upper Gluing and Banding 2

The upper glue pot feeds glue downward to reduce glue ageing, maintain uniform coating and simplify cleaning.

06

Quick Melting Device

The automatic pre-melting unit senses the glue level, shortens warm-up time and helps prevent glue ageing during continuous production.

07

End Cutting

The reinforced end-cutting unit trims the front and rear edges quickly and smoothly for consistent accuracy.

08

Rough Trimming

Rough trimming rapidly removes excess edge banding and prepares a uniform surface for final finishing.

09

Fine Trimming

The fine-trimming unit rounds and refines the upper and lower edges of the panel.

10

Corner Rounding

The corner-rounding unit trims all four corners into smooth arcs to improve safety and finished appearance.

11

Scraping

The scraping unit removes trimming ripples so the upper and lower edges are smoother and cleaner.

12

Flexible Scraping

Floating adaptive scraping removes steps and glue marks for smooth, flush edges.

13

Buffing 1

Cloth buffing wheels remove fine marks and improve the gloss of the finished edge.

14

Buffing 2

Cloth buffing wheels remove fine marks and improve the gloss of the finished edge.
