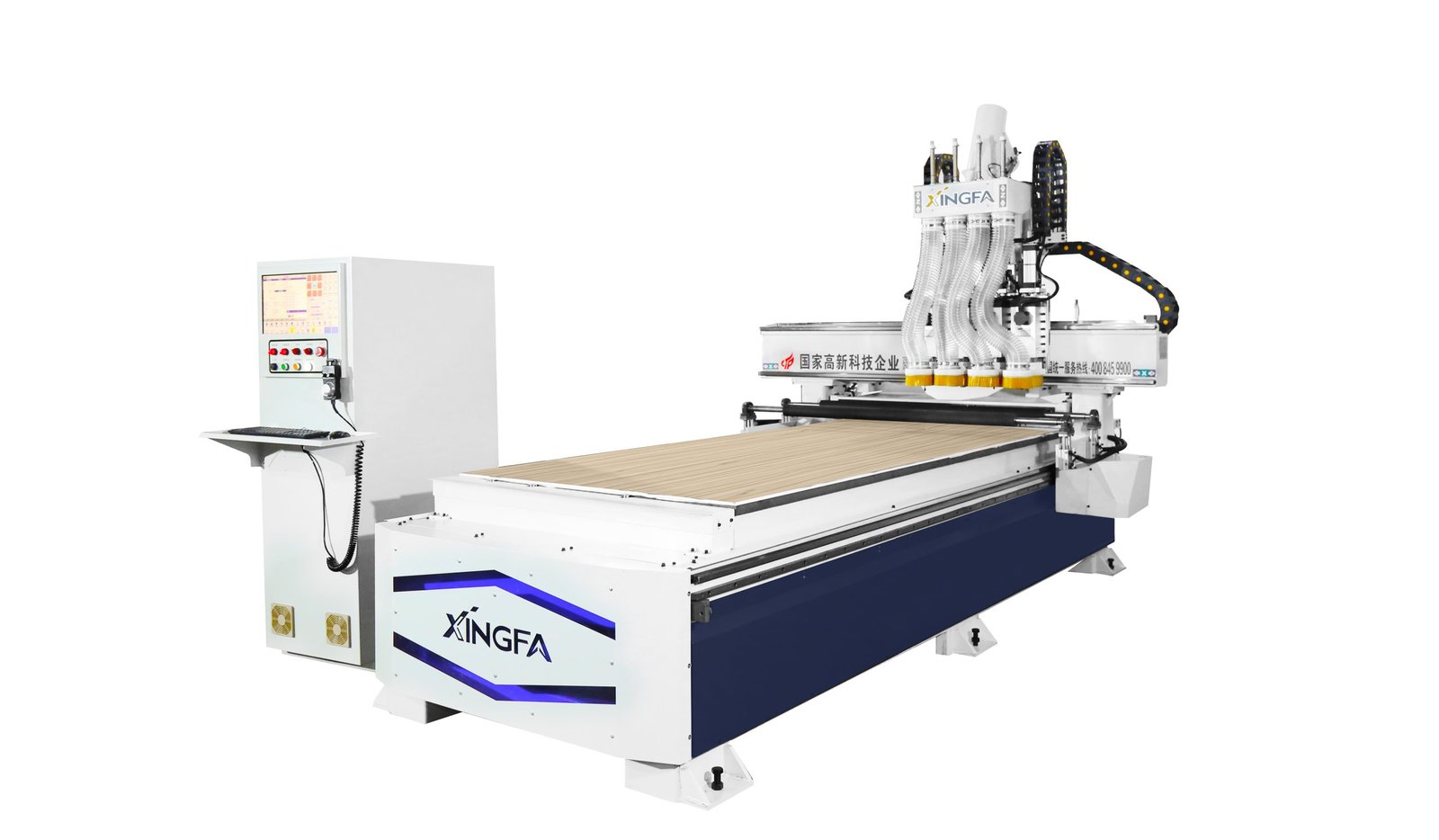

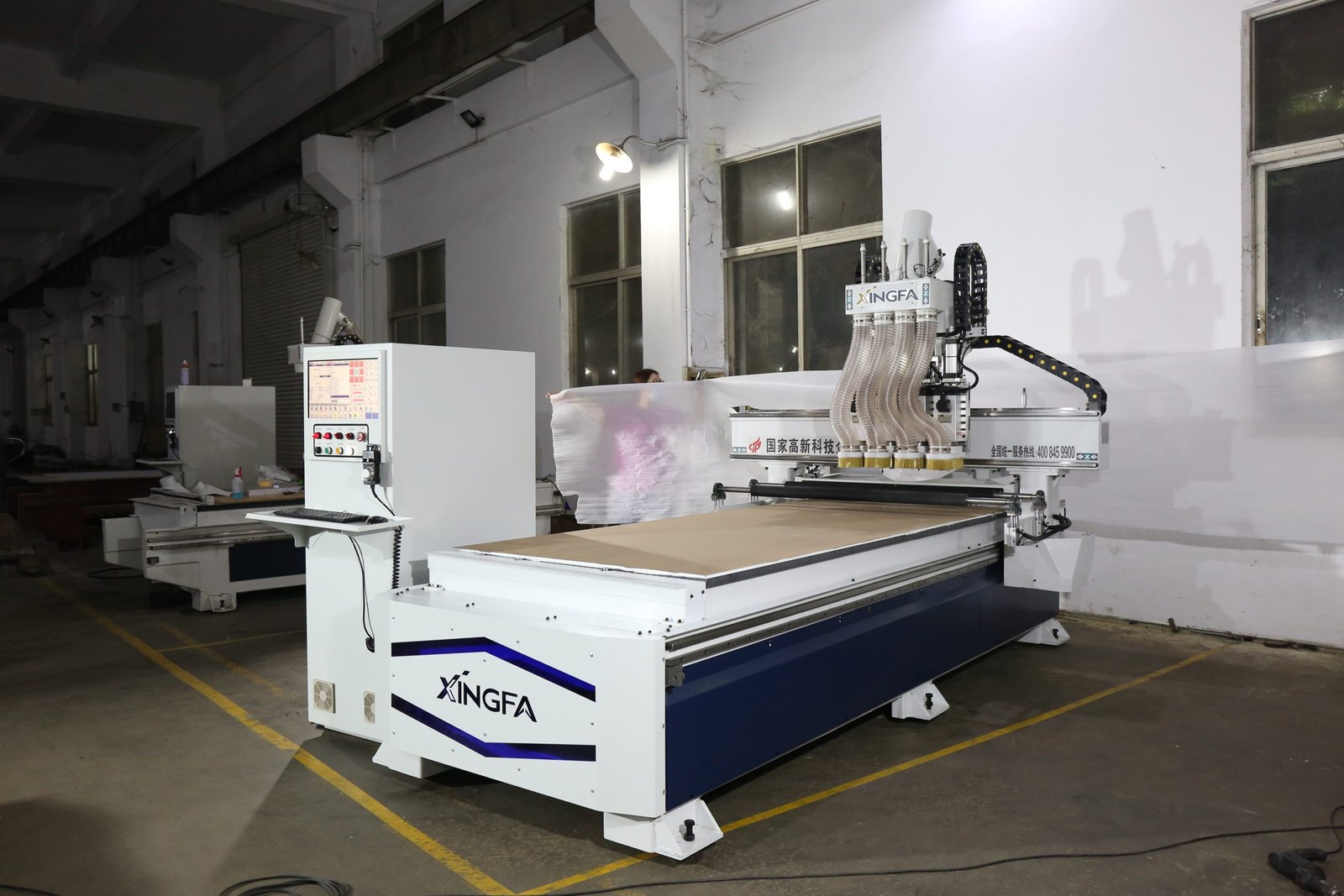

H4 Four-Process CNC Cutting Machine
Four-process CNC cutting machine for flexible cabinet production.
- Working travel工作行程
- 1300 × 2500 × 200 mm
- Working speed工作速度
- 18 m/min
- Spindles主轴配置
- 4 × 6.0 kW / 18,000 r/min

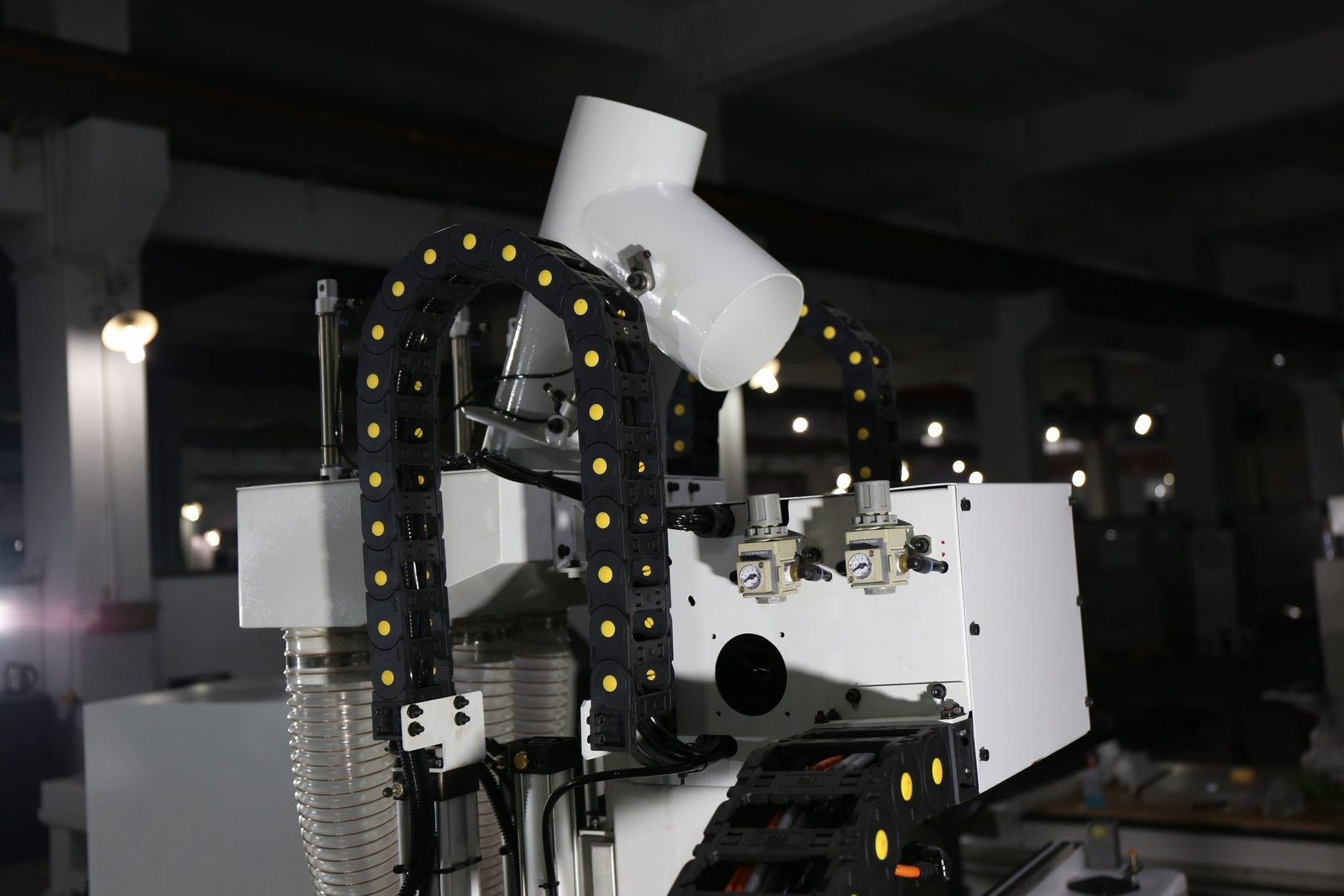

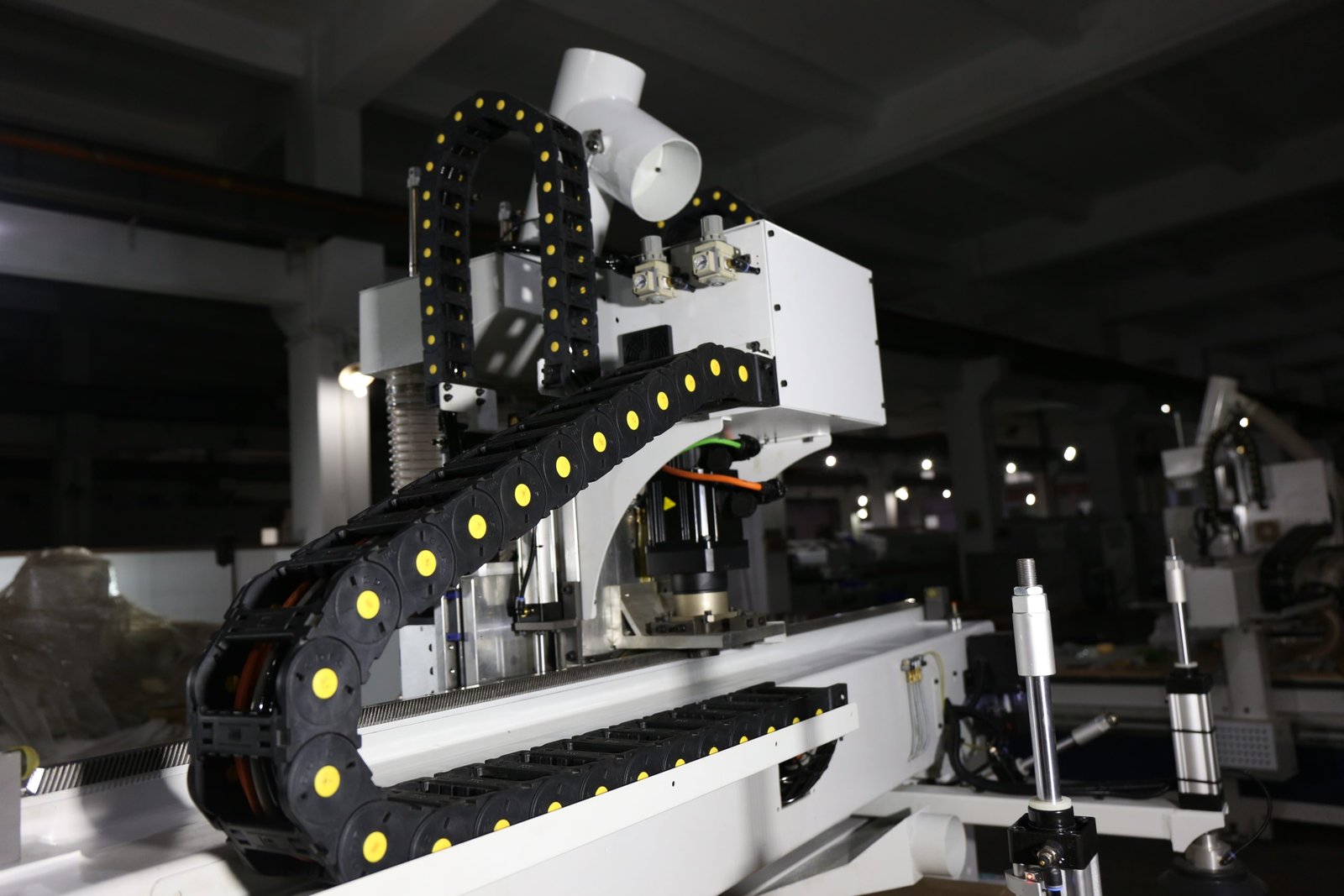

Machine Details设备细节
Features

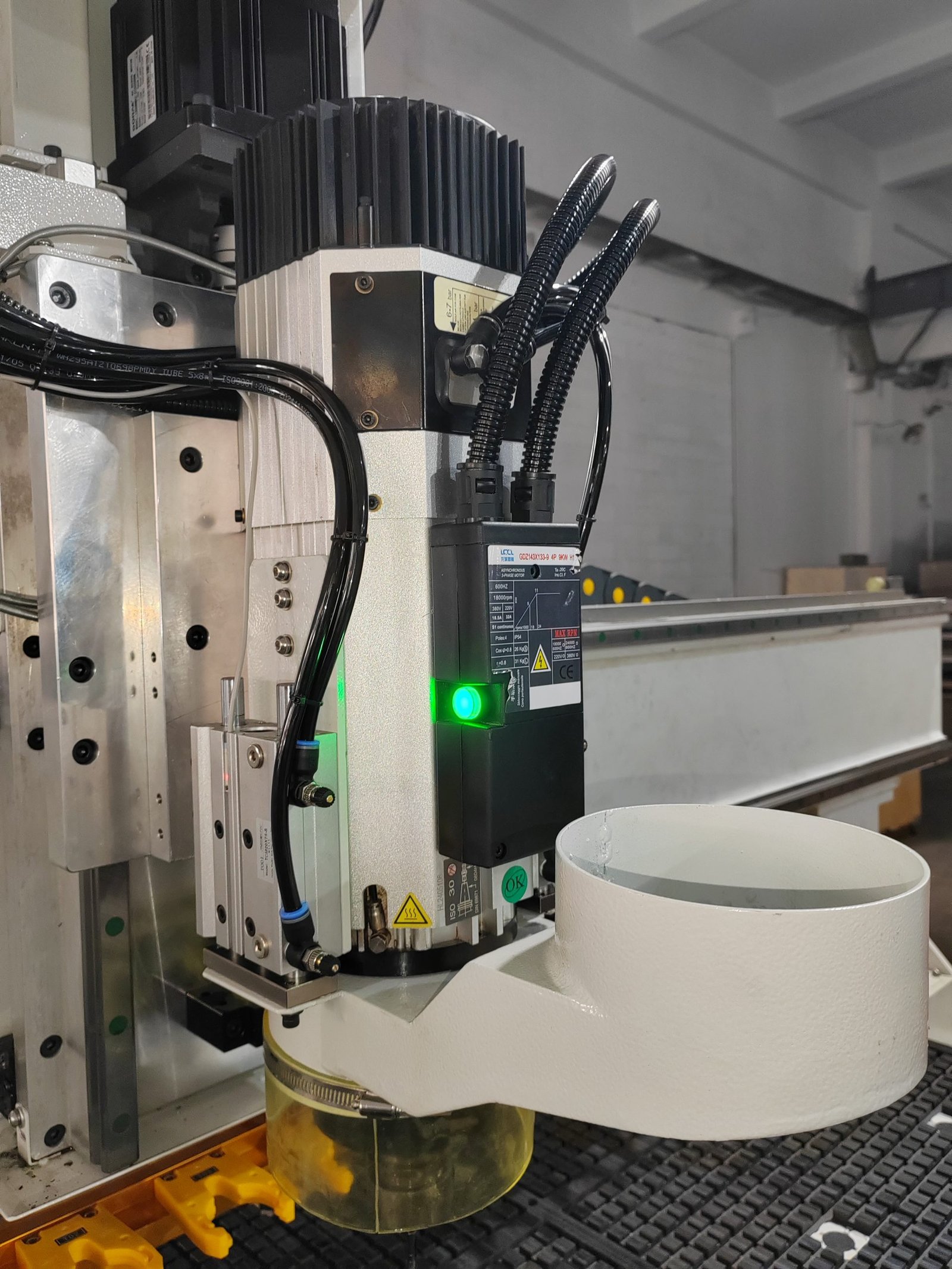

Four High-Speed Spindles
Four 6.0 kW air-cooled spindles support cabinet drilling, cutting and grooving, together with basic door-shaping work.

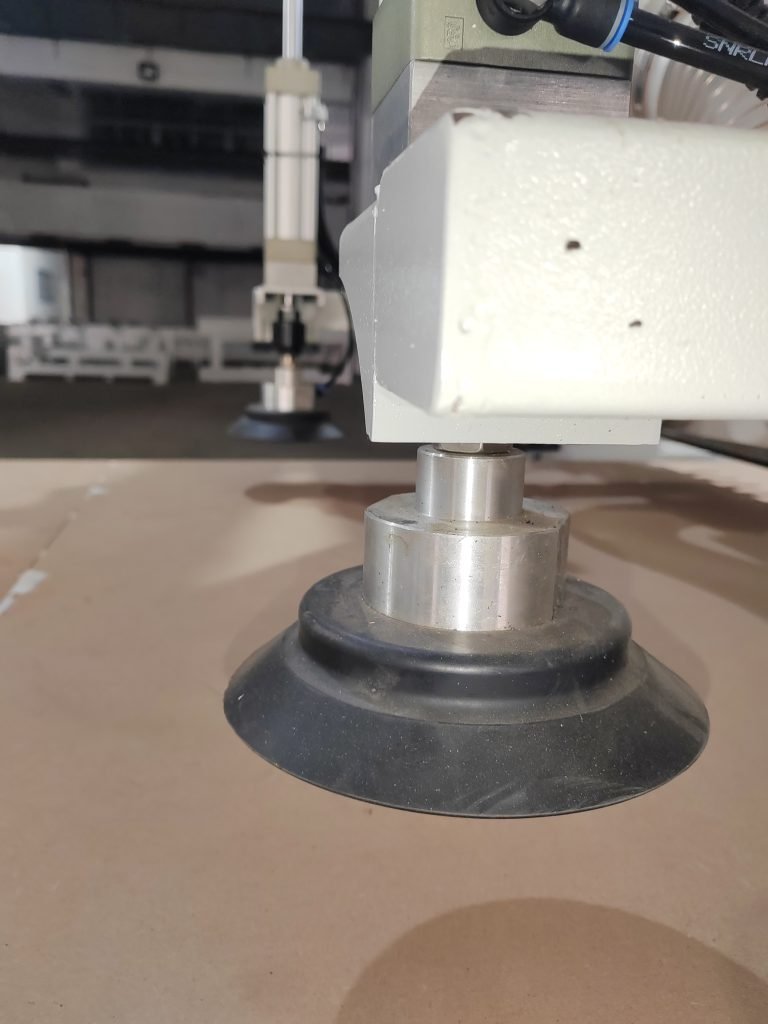

Multi-Zone Vacuum Table
The multi-point, multi-groove table is designed for strong holding force and rapid vacuum release during panel processing.

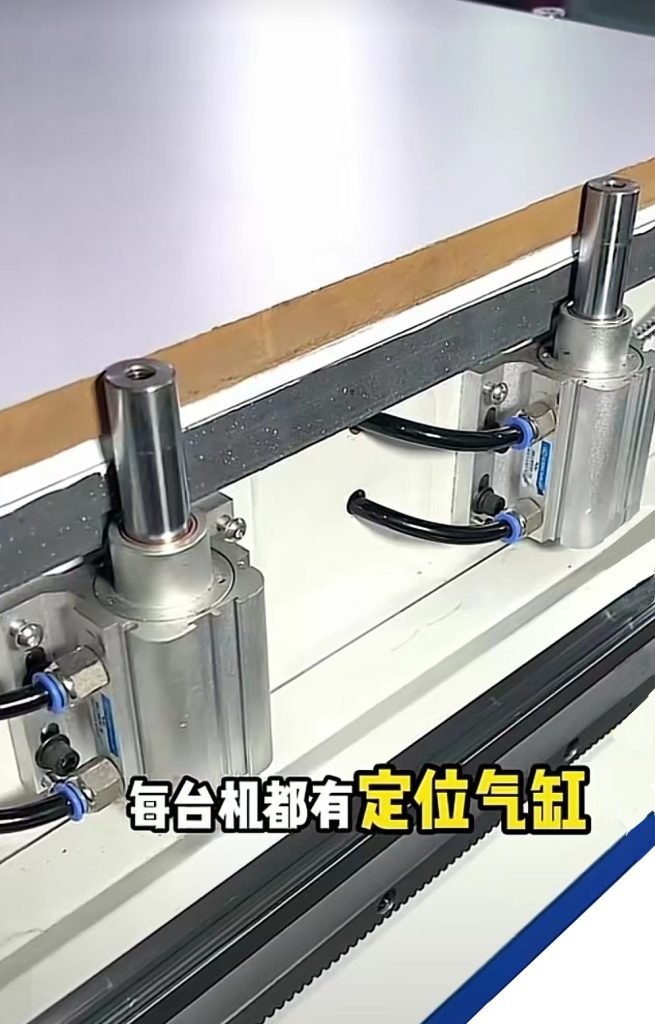

Automatic Positioning Cylinders
High-precision automatic positioning cylinders establish a repeatable panel reference before processing.

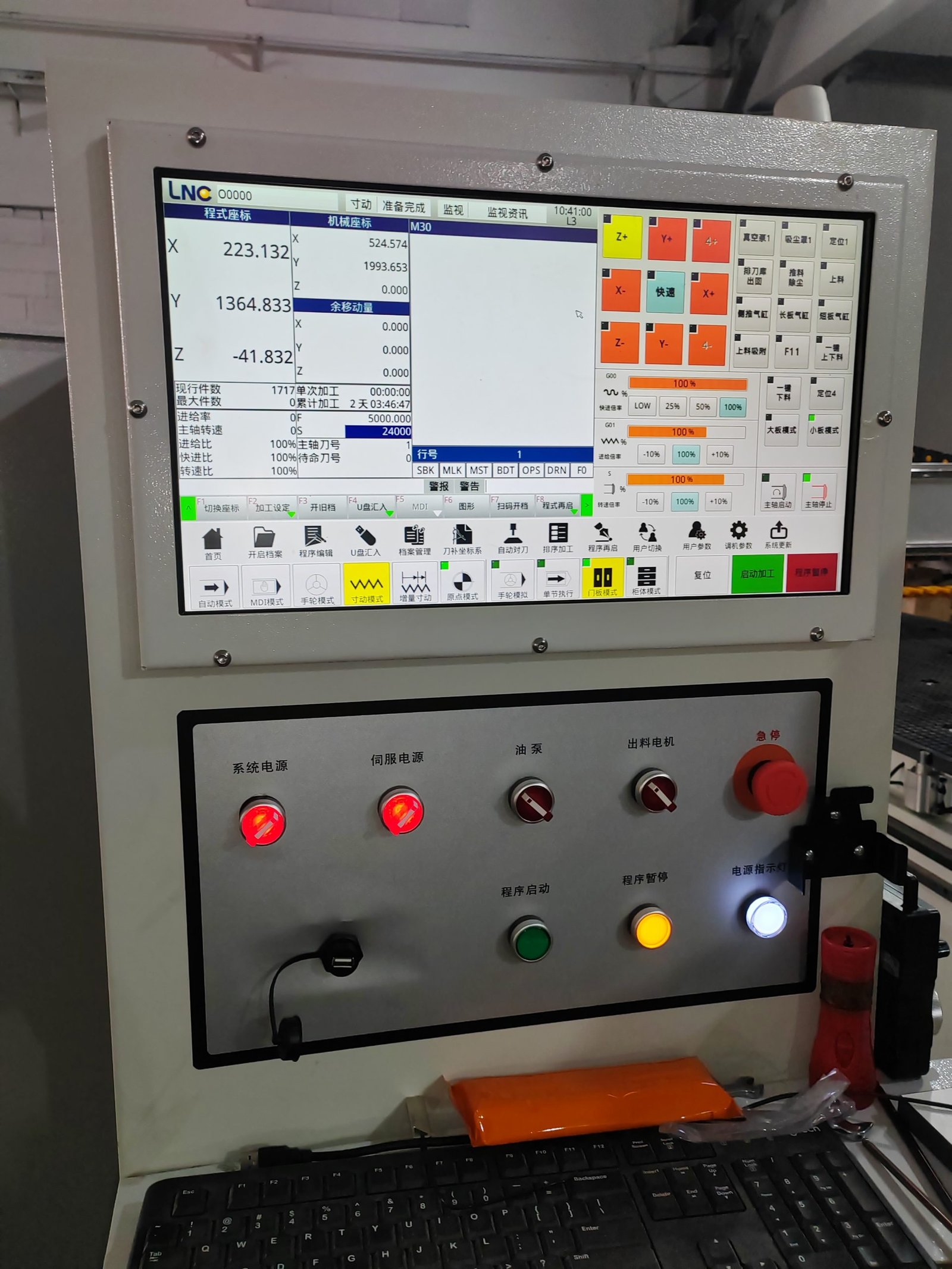

Taiwan Control System
The documented Taiwan control system centralizes job operation and machine status at the operator panel.

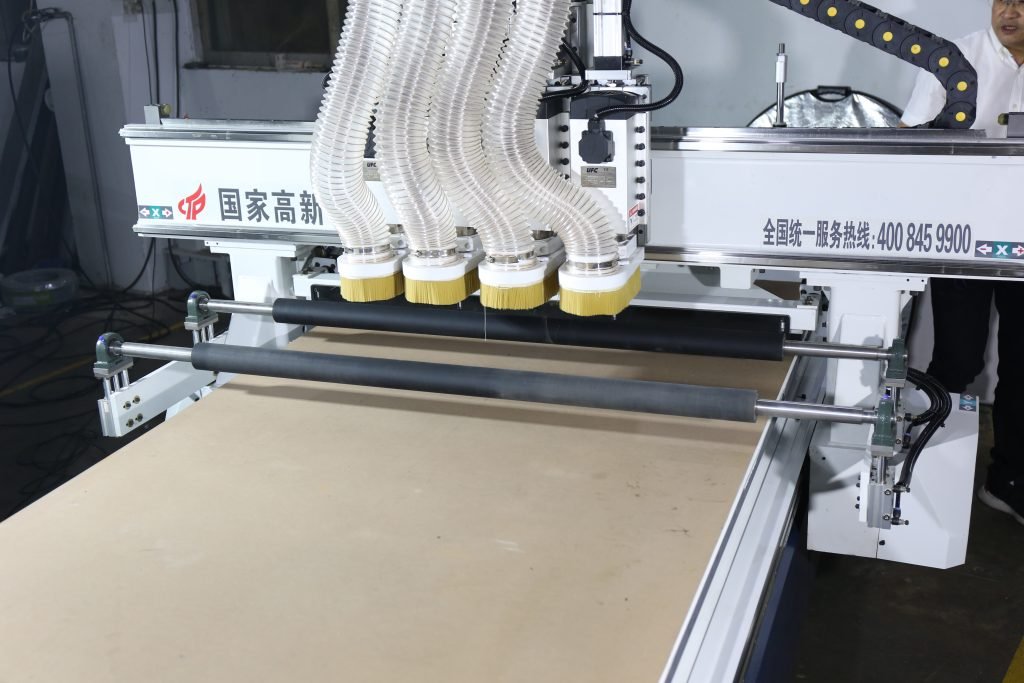

Automatic Dust Collection Switching
The central dust collection connection switches with the machining process to collect chips around the active spindle.
Technical Data技术数据
Specifications
Working range加工范围
- Table size工作台尺寸
- 1230 × 2440 mm
- Working travel工作行程
- 1300 × 2500 × 200 mm
- Rapid speed快速移动速度
- 75 m/min
- Working speed工作速度
- 18 m/min
Drive and utilities驱动及配套系统
- Spindles主轴配置
- 4 × 6.0 kW air-cooled / 18,000 r/min4 × 6.0 kW 风冷 / 18,000 r/min
- Working voltage工作电压
- AC 380 V / 3 PH / 50 Hz
- X/Y driveX/Y 轴驱动
- AC servo交流伺服
- Z driveZ 轴驱动
- AC servo交流伺服
- Vacuum system真空系统
- 7.5 kW water pump7.5 kW 水泵
Safety system安全系统
- Protections安全保护
- Overtravel / emergency stop / limit / door power-off / electrical protection超程 / 急停 / 限位 / 开门断电 / 电气保护
- Lubrication润滑系统
- Timed and metered automatic central lubrication定时定量自动集中润滑
Production Uses生产应用
Applications
Cabinet Panel Production柜体板材生产
Drilling, cutting and grooving for cabinet panels in one four-process setup.通过四工序配置完成柜体板材的钻孔、开料与开槽。
Basic Door Shaping基础门板造型
The documented spindle configuration also supports basic door-pattern machining.该主轴配置还支持基础门板花型加工。
Invisible Joinery隐形连接工艺
The machine can be configured for Lamello and other concealed-connector processes.设备可配置拉米诺等隐形连接件加工工艺。
