XF-8K

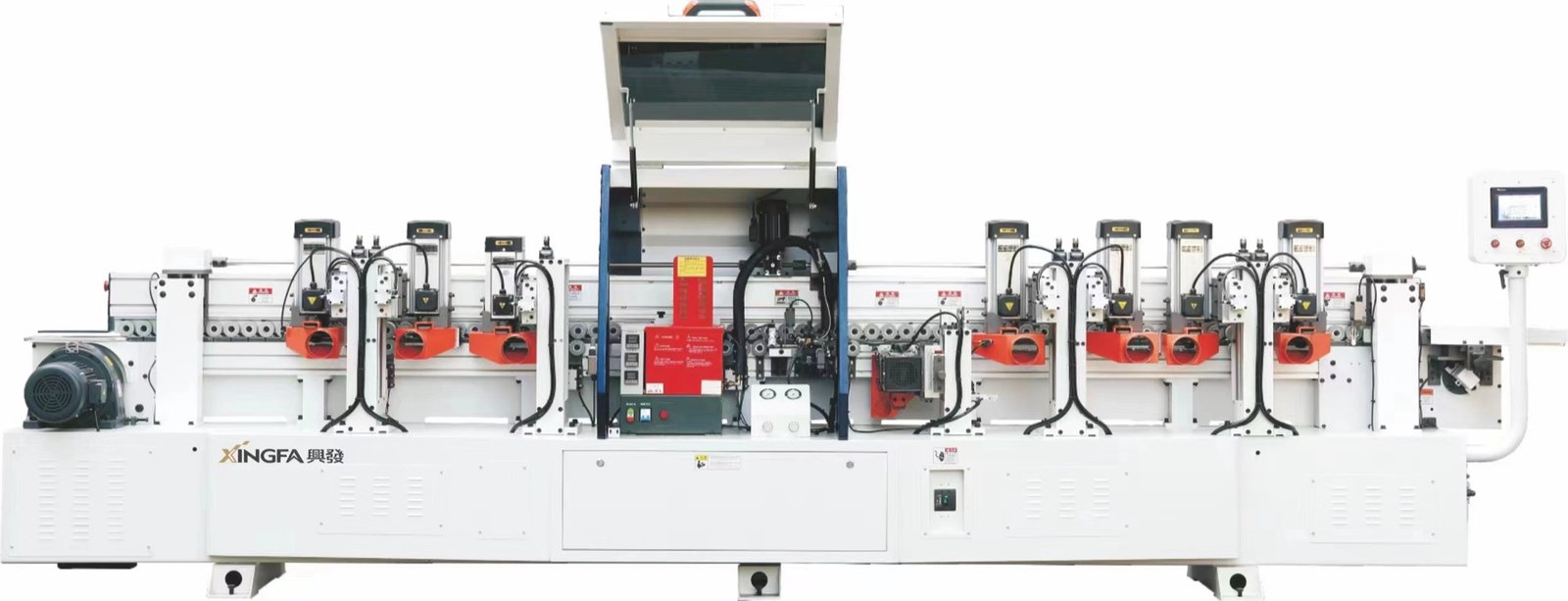

XF-8K Door Frame Edge Banding Machine
Door-frame edge banding machine for specialized component processing.
- Feed speed进料速度
- 11.5 m/min
- Panel thickness板材厚度
- 10-60 mm
- Rated power额定功率
- 40.5 kW
Machine Details设备细节
Features
01

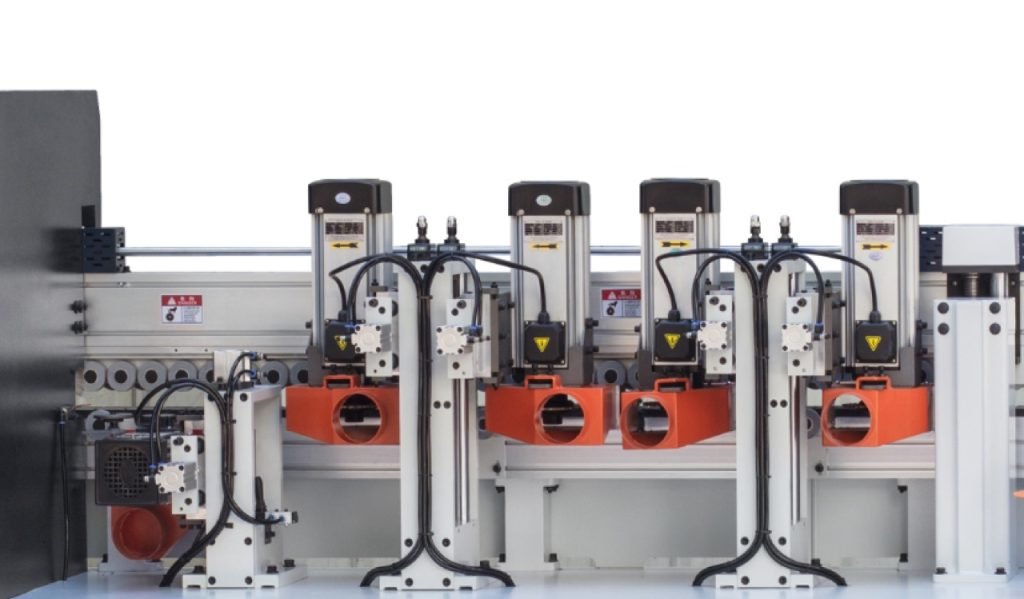

Grooving Units 1-5
The first coordinated grooving units form the door-frame profile.
02

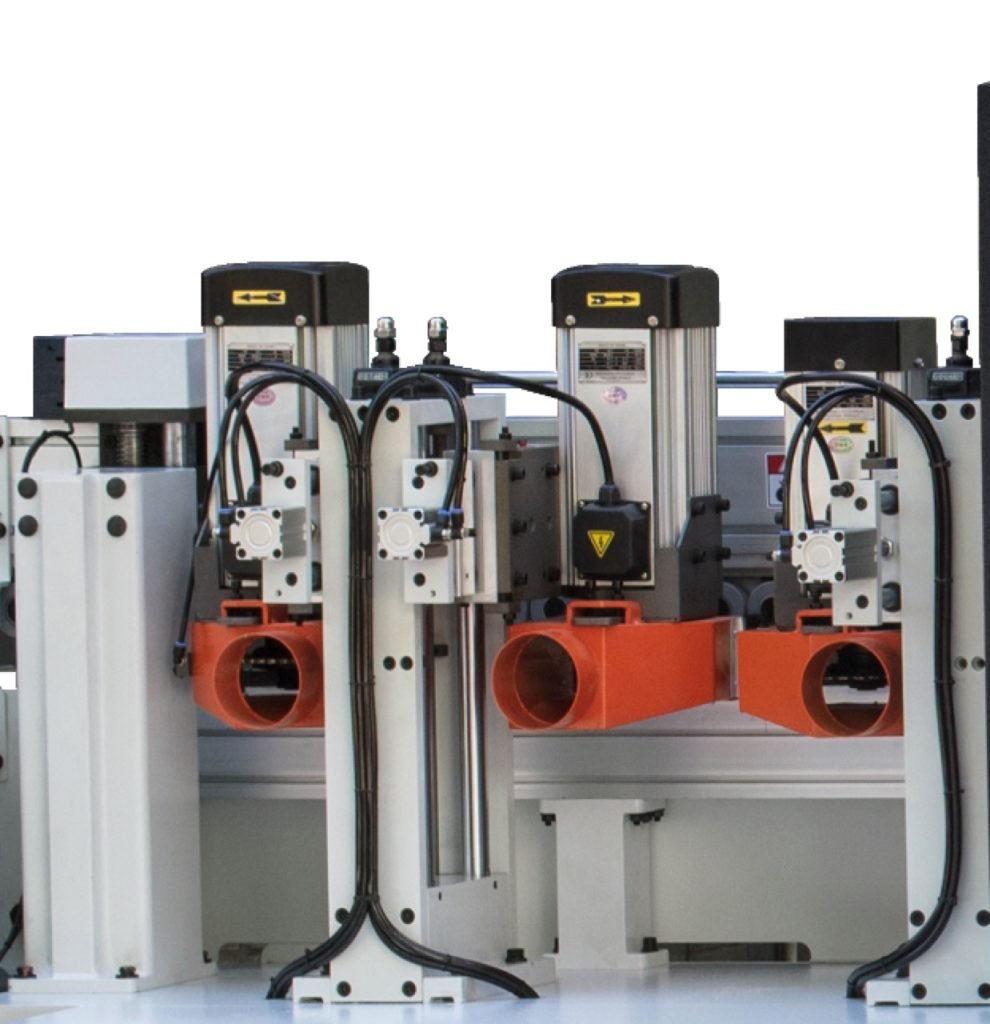

Grooving Units 6-8
The finishing grooving units complete the remaining profile operations.
Technical Data技术数据
Specifications
Machine data设备参数
- Machine dimensions设备尺寸
- 5400 × 850 × 1600 mm
- Weight重量
- 1600 kg
- Voltage电压
- 380 V
- Panel thickness板材厚度
- 10-60 mm
- Minimum panel length最小板材长度
- 700 mm
- Minimum panel width最小板材宽度
- 120 mm
- Feed speed进料速度
- 11.5 m/min
- Rated power额定功率
- 40.5 kW
Production Uses生产应用
Applications
Door Frames门框加工
Multi-stage forming and grooving for door-frame components.用于门框部件的多工序成型与开槽。
