XB612S

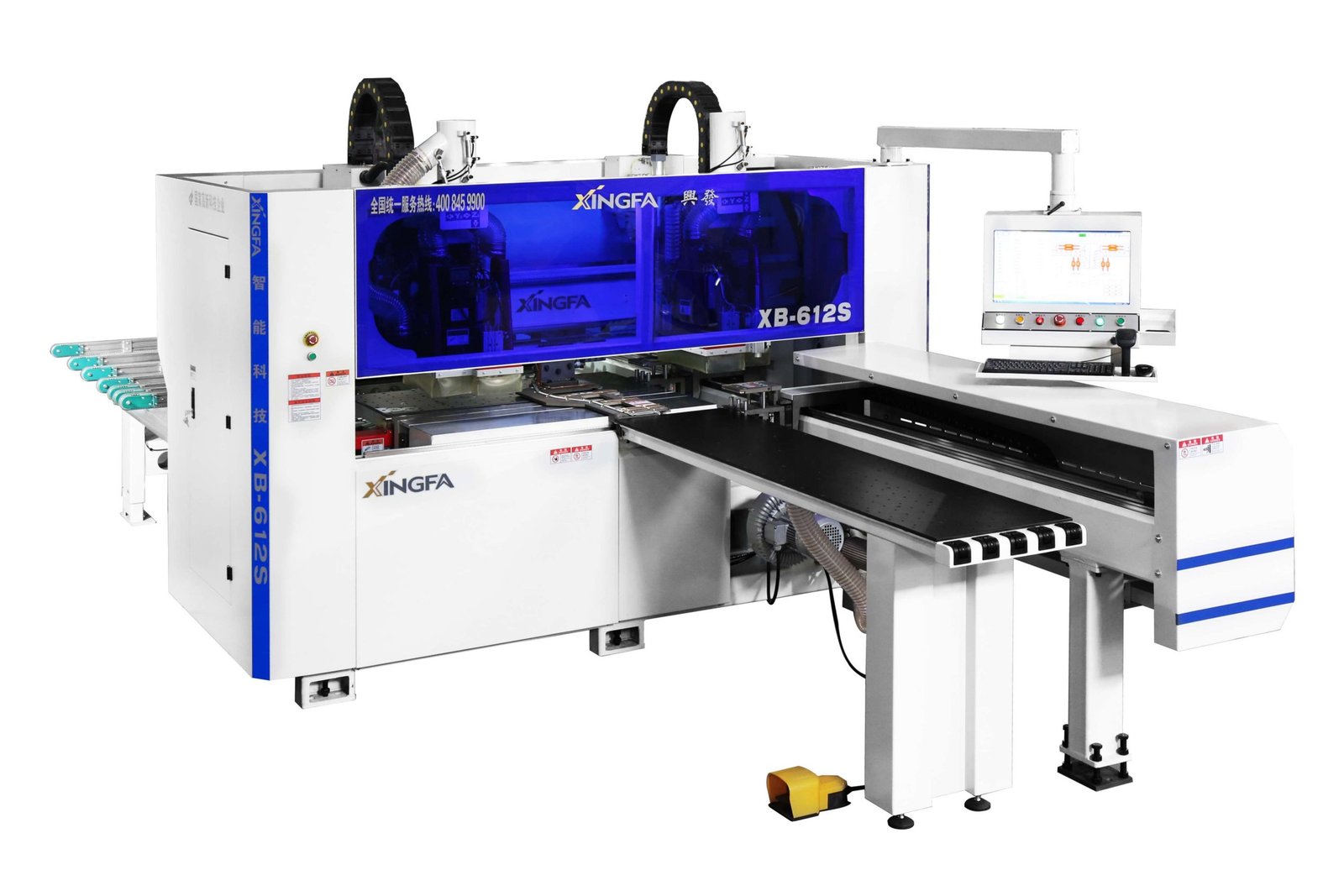

XB612S CNC Drilling Machine
Double-drilling-box CNC machine for efficient multi-side panel processing.
- Maximum panel width最大板材宽度
- 1250 mm
- Maximum panel length最大板材长度
- 5000 mm
- Total power总功率
- 25.6 kW
Machine Details设备细节
Features
01

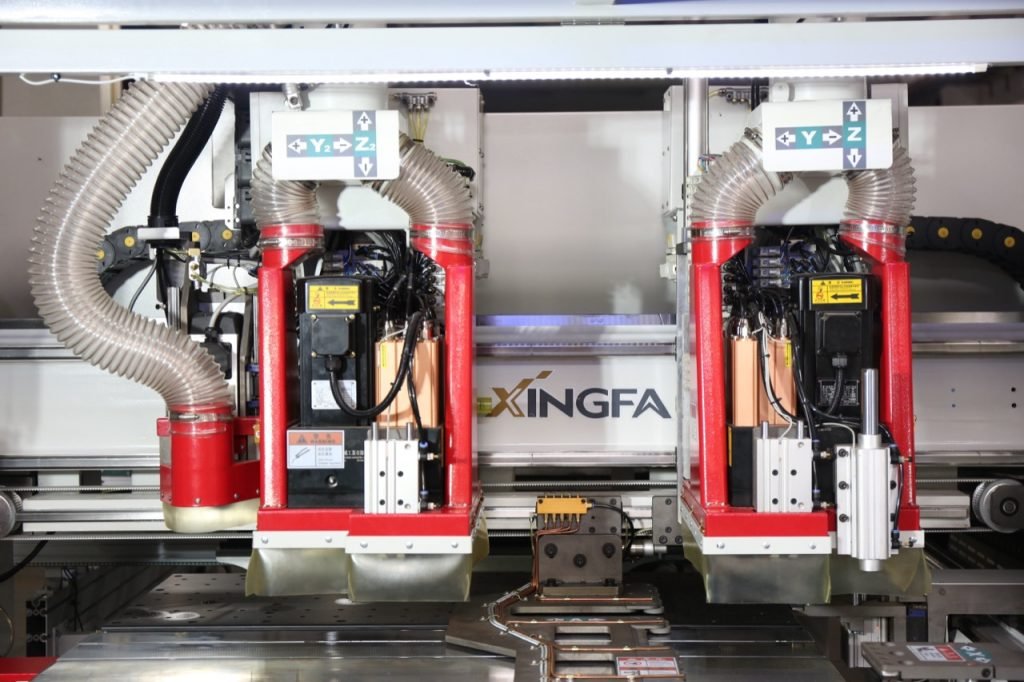

Symmetrical Double Drilling Boxes
Two symmetrical drilling boxes process matching holes efficiently.
02

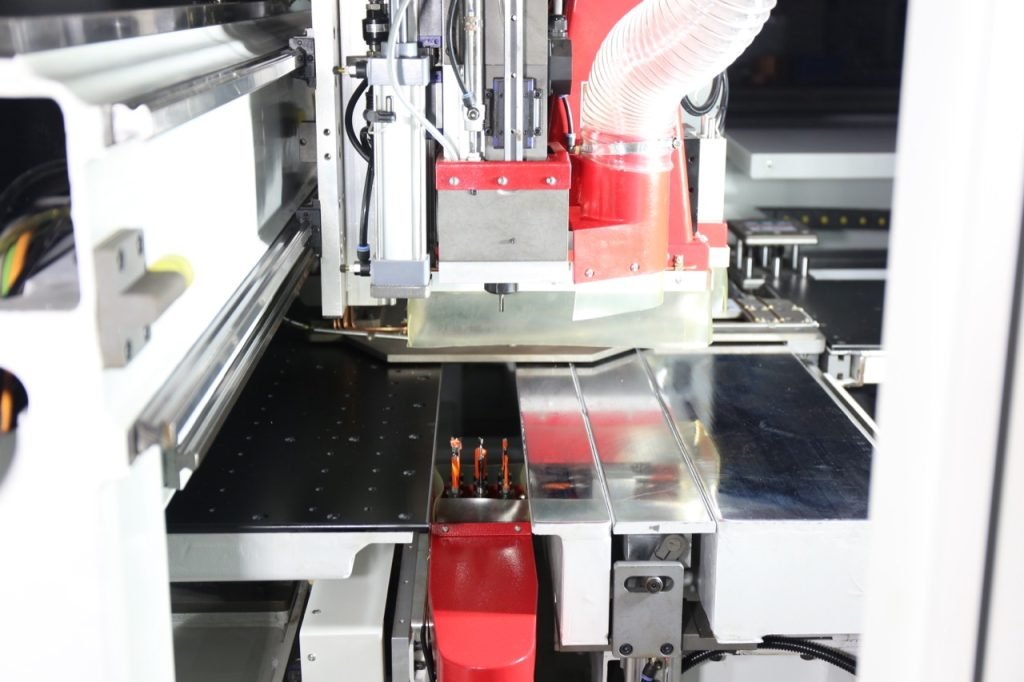

Upper and Lower Processing
Upper and lower units support coordinated front and back processing.
03

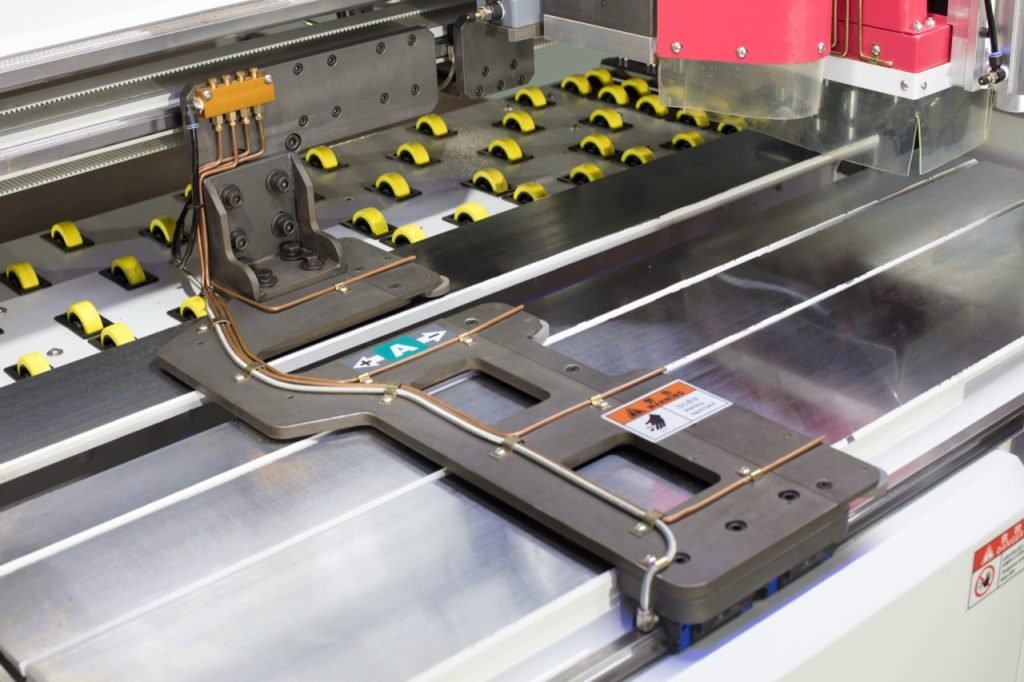

Dual Clamps
Dual clamps stabilize and reposition panels during production.
04

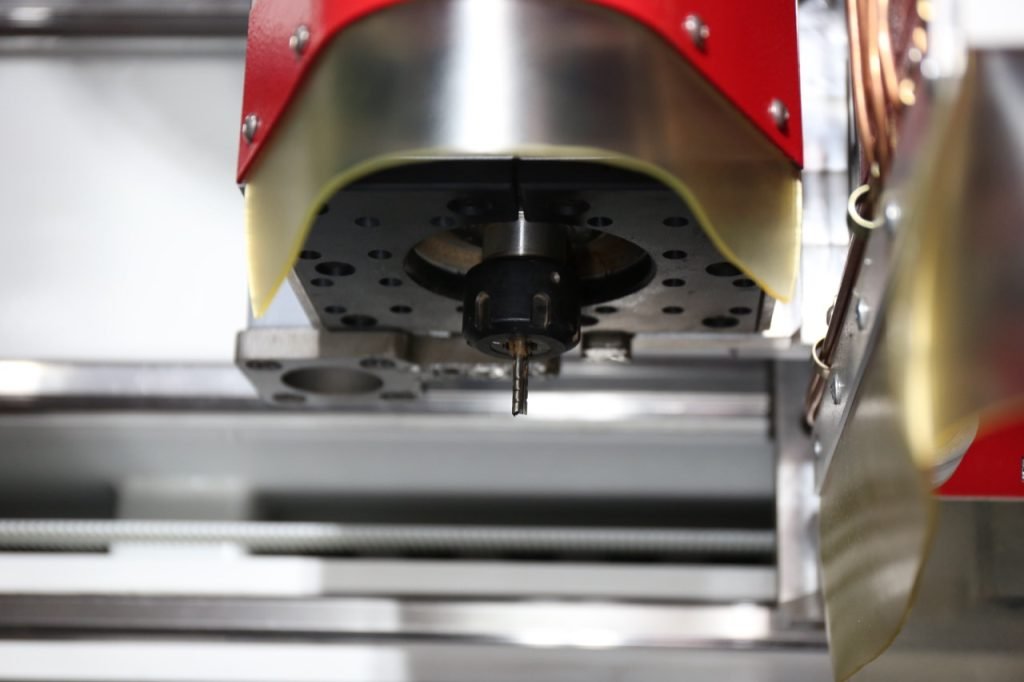

Milling Spindles
High-speed spindles support grooving and milling processes.
Technical Data技术数据
Specifications
Panel capacity板材加工范围
- Maximum width最大宽度
- 1250 mm
- Minimum width最小宽度
- 50 mm
- Maximum length最大长度
- 5000 mm
- Maximum thickness最大厚度
- 50 mm
Machine data设备参数
- Total power总功率
- 25.6 kW
- Voltage电压
- 380 V / 50 Hz
- Air pressure气压
- 0.7-0.8 MPa
- Net weight净重
- 3900 kg
- Machine dimensions设备尺寸
- 5685 × 2930 × 2200 mm
Production Uses生产应用
Applications
Batch Panel Processing板材批量加工
Efficient symmetrical drilling for panel furniture production.适用于板式家具生产的高效对称钻孔加工。
