XA-5CT

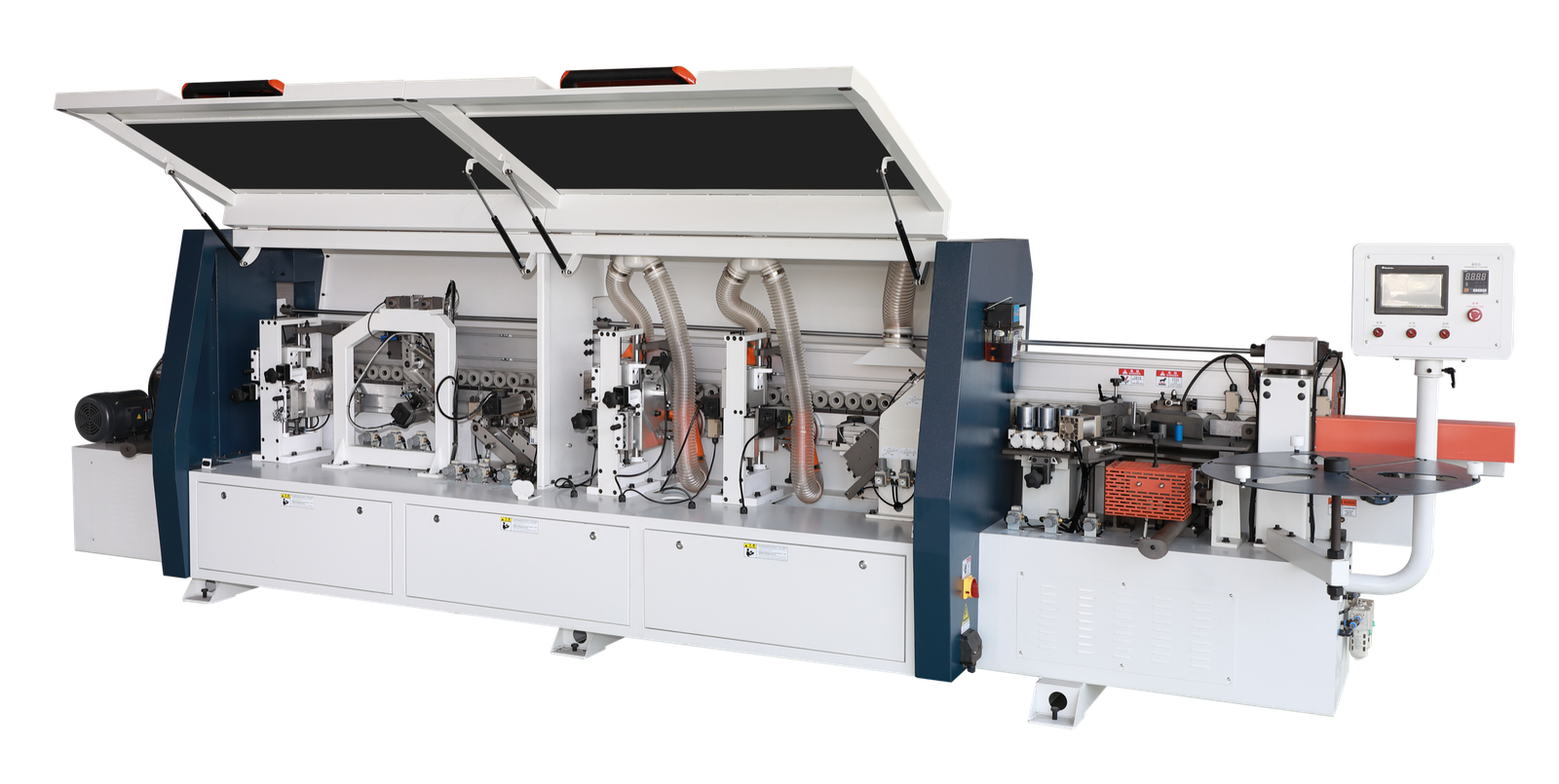

XA-5CT Automatic Edge Banding Machine
Compact automatic edge banding machine with corner rounding for a complete finishing workflow.
- Total power总功率
- 11.5 kW
- Feed speed进料速度
- 14-23 m/min
- Panel thickness板材厚度
- 9-60 mm
Machine Details设备细节
Features
Gluing
The standard configuration uses a lower glue pot to apply hot-melt glue to the panel edge.
Pressing
The pressing unit applies continuous, even pressure so the edge band bonds tightly without hollow gaps, warping or peeling.
End Cutting
The reinforced end-cutting unit trims the front and rear edges quickly and smoothly for consistent accuracy.
Rough Trimming
Rough trimming rapidly removes excess edge banding and prepares a uniform surface for final finishing.
Fine Trimming
The fine-trimming unit rounds and refines the upper and lower edges of the panel.
Corner Rounding
The corner-rounding unit trims all four corners into smooth arcs to improve safety and finished appearance.
Scraping
The scraping unit removes trimming ripples so the upper and lower edges are smoother and cleaner.
Buffing
Cloth buffing wheels remove fine marks and improve the gloss of the finished edge.
Technical Data技术数据
Specifications
Verified 2025 catalogue data2025 图册参数
- Total power总功率
- 11.5 kW
- Overall size外形尺寸
- 5820 × 930 × 1600 mm
- Feed speed进料速度
- 14-23 m/min
- Edge thickness封边带厚度
- 0.4-3 mm
- Panel thickness板材厚度
- 9-60 mm
- Minimum panel length最小板材长度
- ≥ 50 mm
- Minimum panel width最小板材宽度
- ≥ 50 mm
- Minimum panel size最小板材尺寸
- 50 × 300 mm
- Working air pressure工作气压
- 0.6 MPa
Production Uses生产应用
Applications
Panel Furniture Production板式家具生产
Automatic edge finishing for cabinets, wardrobes and other panel furniture components.用于橱柜、衣柜及其他板式家具部件的自动封边精整。
