XB612Q

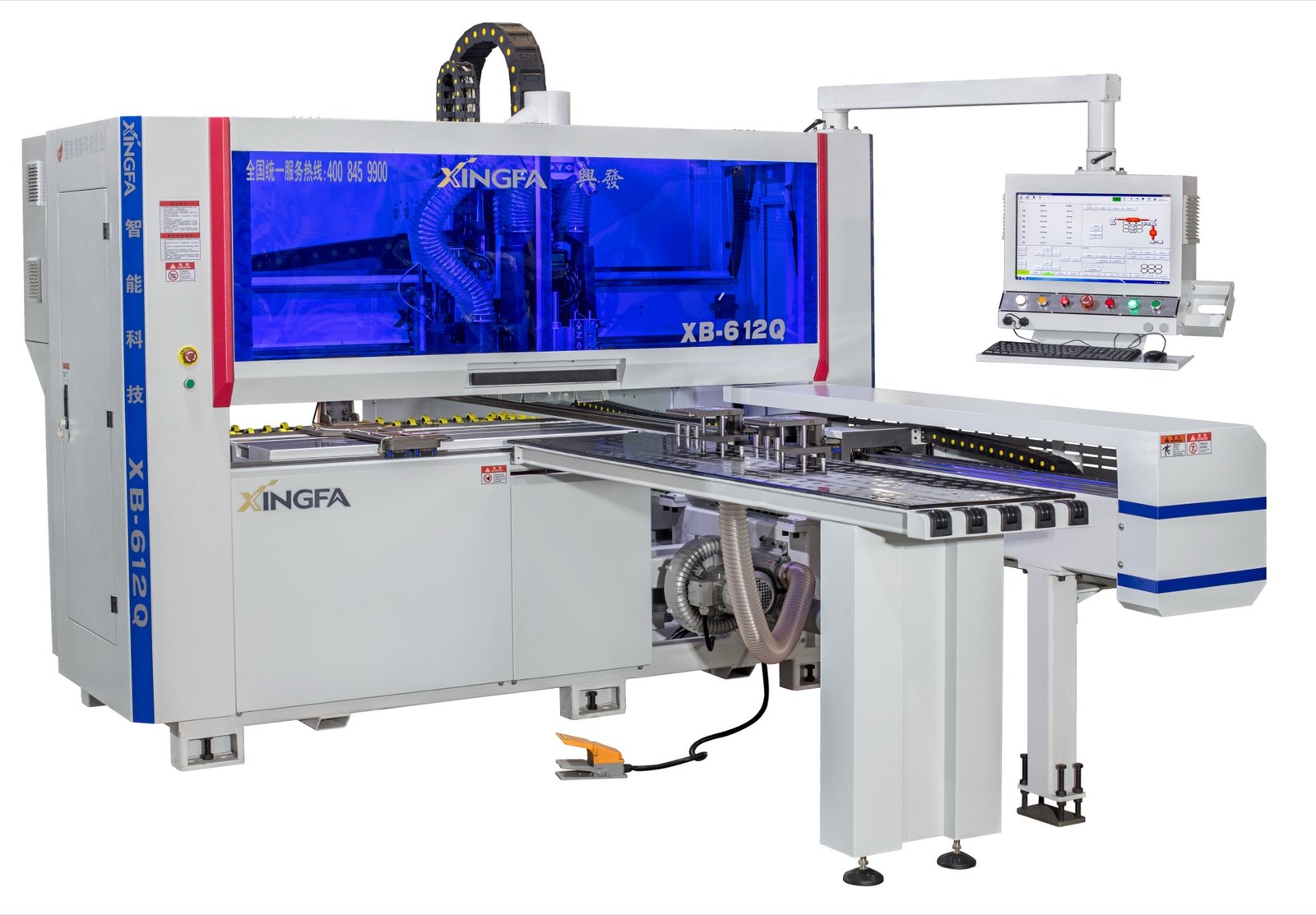

XB612Q CNC Drilling Machine
Single-drilling-box CNC machine for multi-side panel drilling and grooving.
- Maximum panel width最大板材宽度
- 1200 mm
- Maximum panel length最大板材长度
- 5000 mm
- Total power总功率
- 22 kW
Machine Details设备细节
Features
01
Service Access
The open-cover view provides direct access to the processing area.
02

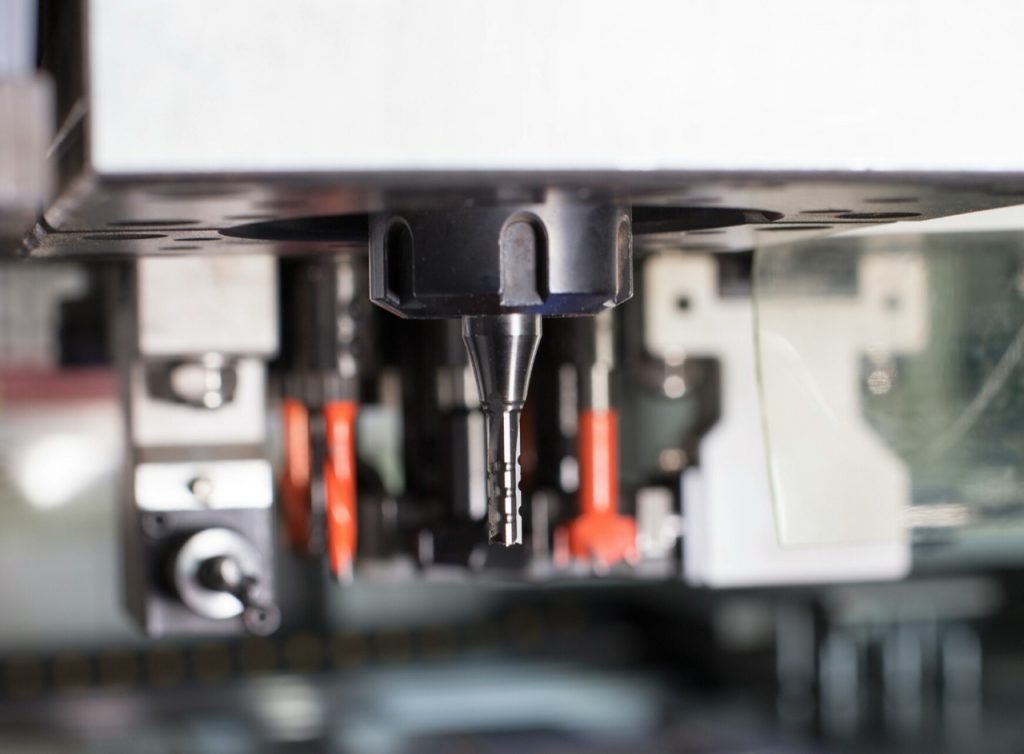

High-Speed Spindle
Upper and lower spindles support drilling and grooving processes.
03

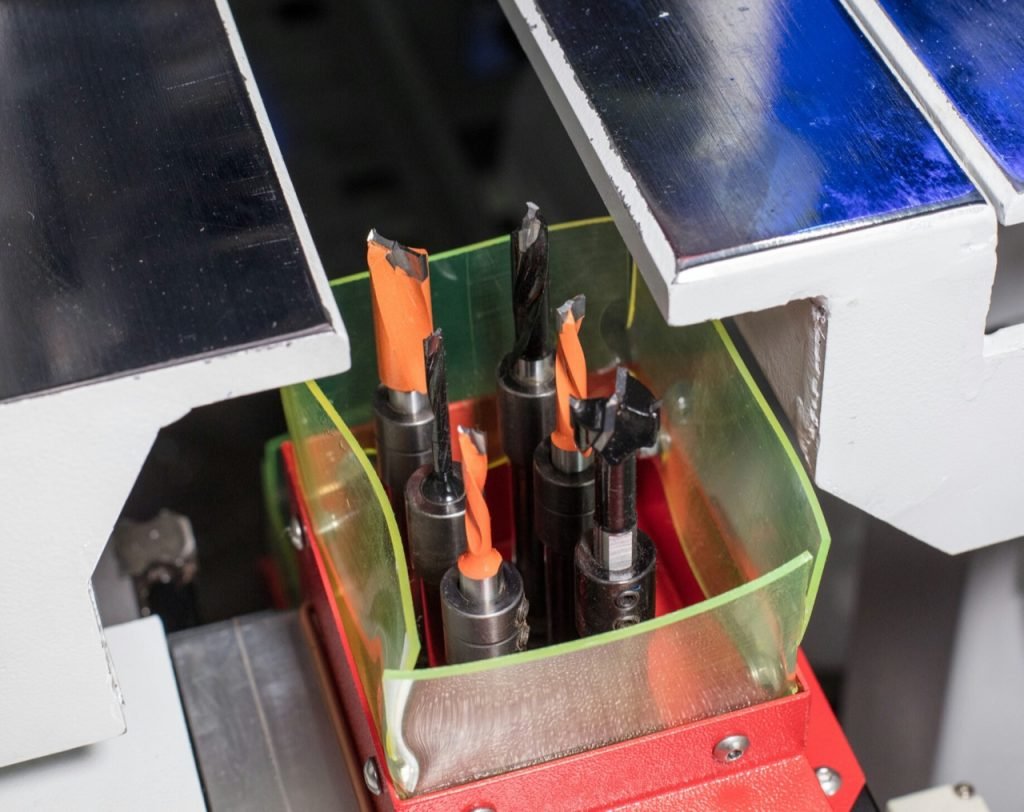

Lower Drilling Unit
The lower drilling unit processes the reverse side without repeated panel handling.
04

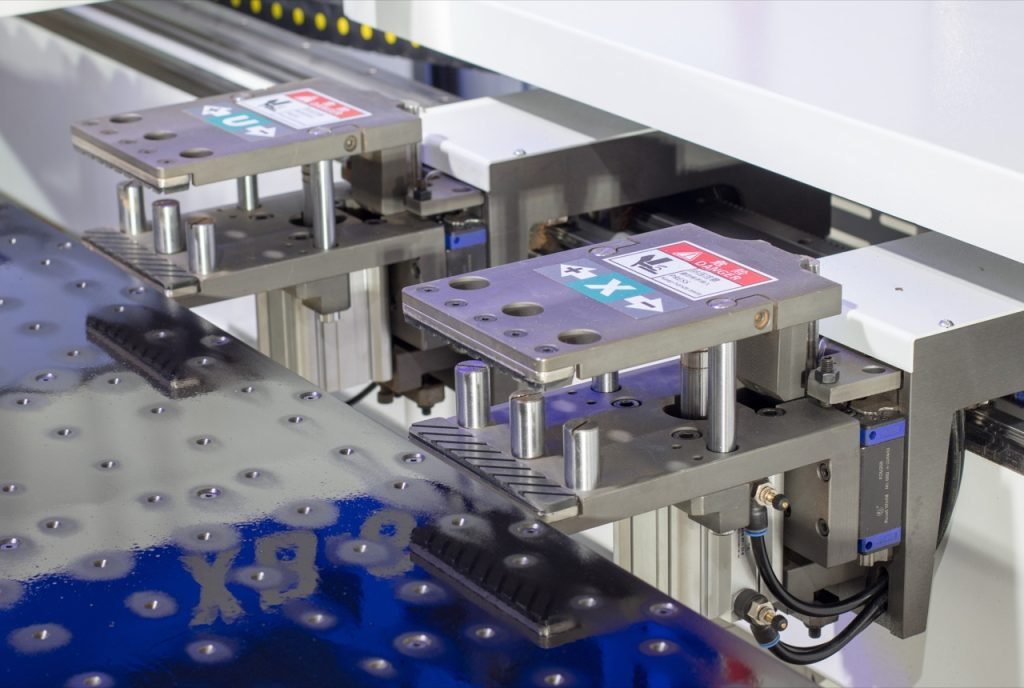

Panel Clamp
The clamping system positions panels during automated processing.
Technical Data技术数据
Specifications
Panel capacity板材加工范围
- Maximum width最大宽度
- 1200 mm
- Minimum width最小宽度
- 50 mm
- Maximum length最大长度
- 5000 mm
- Maximum thickness最大厚度
- 50 mm
Machine data设备参数
- Total power总功率
- 22 kW
- Voltage电压
- 380 V / 50 Hz
- Air pressure气压
- 0.7-0.8 MPa
- Machine dimensions设备尺寸
- 5200 × 2630 × 2200 mm
Production Uses生产应用
Applications
Cabinet Panels柜体板材
Six-side drilling and grooving for cabinet components.用于柜体部件的六面钻孔与开槽。
