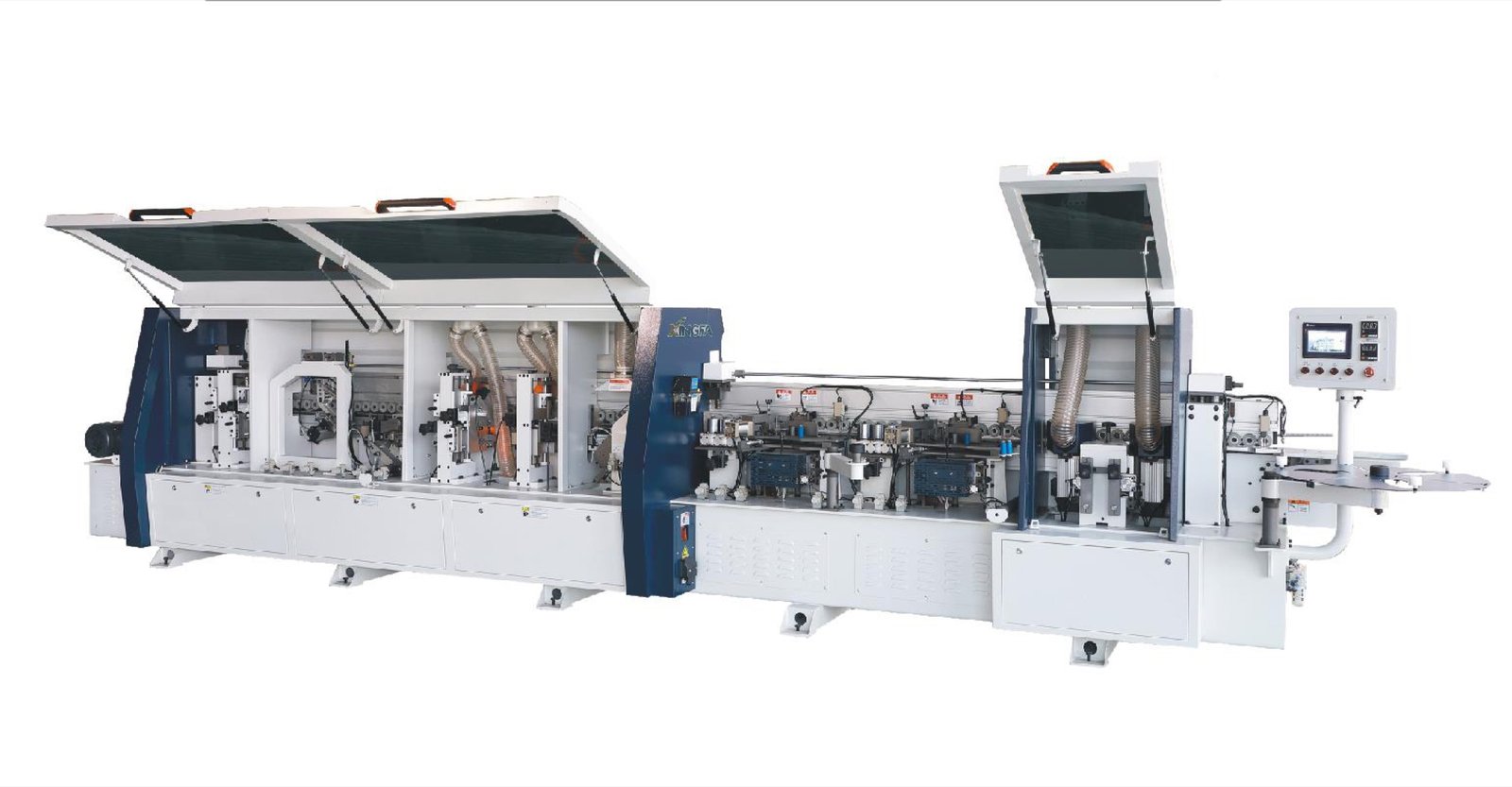

XA-6CTA

Automatic Edge Banding Machine全自动封边机

Extended automatic edge banding configuration with dual gluing, quick melting and double buffing.

Request a Quote

Machine Details设备细节

Features

Pre-milling

Pre-milling

Designed to mill away surface burrs, ensuring tight band contact and improved edge bonding performance.

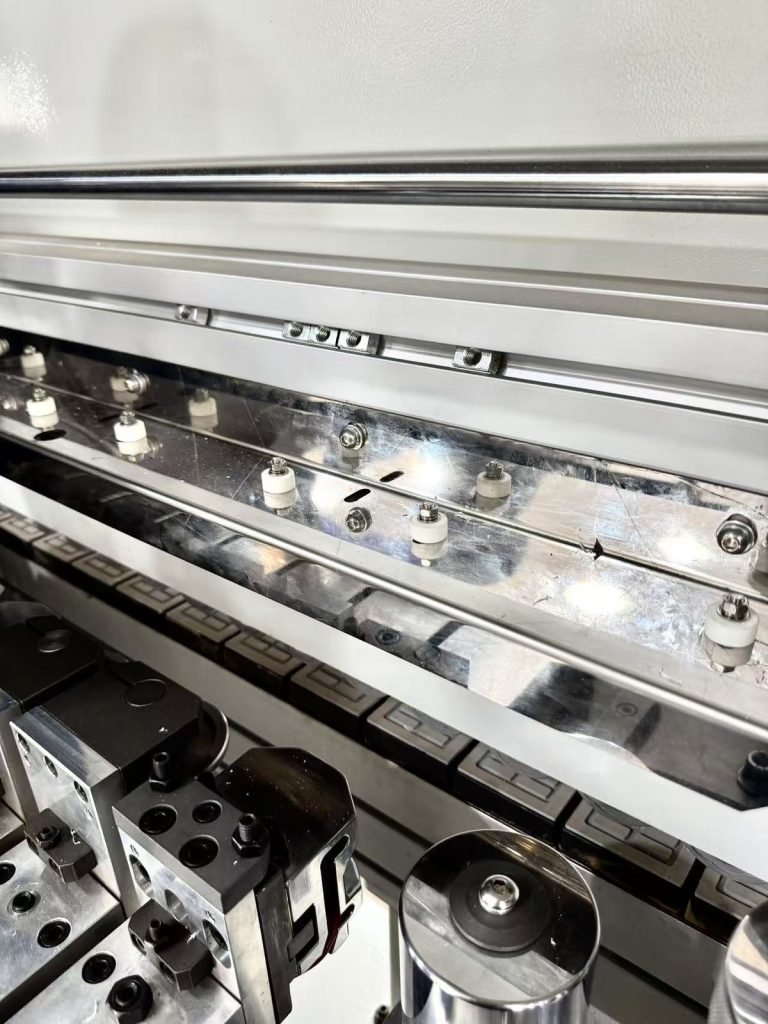

Heating Lamp 1

Heating Lamp 1

The infrared heating lamp preheats the panel to improve bonding strength.

Lower Glue Pot

Lower Glue Pot

The lower gluing unit applies hot-melt glue evenly before the edge tape is pressed onto the panel.

Pressing 1

Pressing 1

It evenly compresses the edge band for tight bonding with the panel. Effectively preventing edge warping, glue peeling and hollow gaps, it achieves firm adhesion and neat, smooth edge finishing.

Heating Lamp 2

Heating Lamp 2

The infrared heating lamp preheats the panel to improve bonding strength.

Upper Glue Pot

Upper Glue Pot

The upper glue pot feeds glue downward to reduce glue ageing, maintain uniform coating and simplify cleaning.

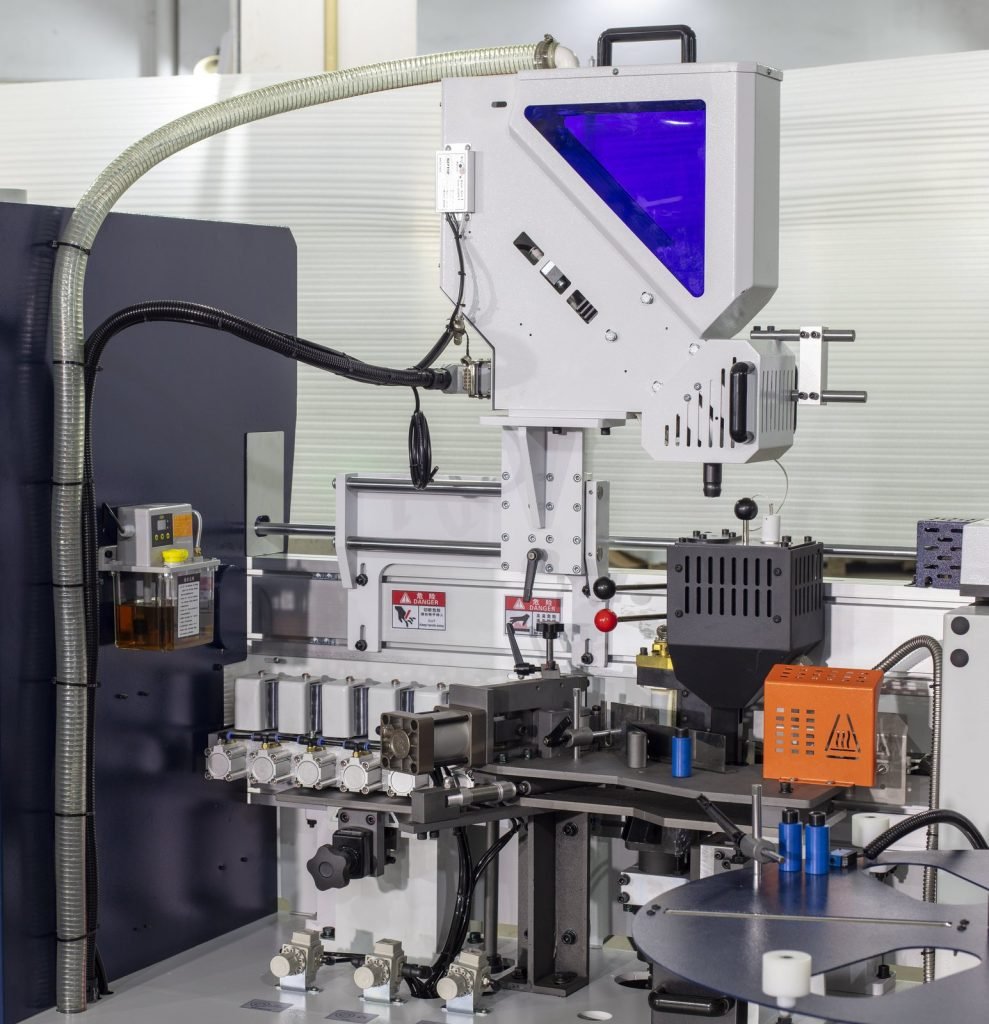

Quick Melting Device

Quick Melting Device

Rapid pre‑melting unit with automatic liquid‑level sensing. It pre‑melts glue granules and feeds molten adhesive to the upper glue pot automatically. It cuts preheating time and prevents glue yellowing from repeated overheating for stable continuous‑run production.

Pressing 2

Pressing 2

It evenly compresses the edge band for tight bonding with the panel. Effectively preventing edge warping, glue peeling and hollow gaps, it achieves firm adhesion and neat, smooth edge finishing.

End Cutting

End Cutting

Fast, stable front and rear edge trimming. The reinforced end-cutting unit minimizes panel impact during the trimming cycle, while the smooth vertical travel of the cutter head ensures consistent accuracy for every cut.

Rough Trimming

Rough Trimming

Rough Trimming unit rapidly removes excess banding from panel edges, preparing a uniform surface for final finishing. Durable tools and stable guidance ensure clean, vibration-free cutting across varying thicknesses.

Fine Trimming

Fine Trimming

The fine‑trimming unit of the edge bander rounds off the upper and lower edges of the panel.

Corner Rounding

Corner Rounding

After edge banding, the corner rounding unit trims the four corners into small arcs. Smooth rounded edges eliminate sharp hand‑pricking corners and enhance both the safety and appearance of finished workpieces.

Scraping

Scraping

Scraping unit eliminates the ripple marks caused by non-linear cutting motion during trimming, delivering smoother and cleaner top and bottom edges for improved surface flatness and tactile quality.

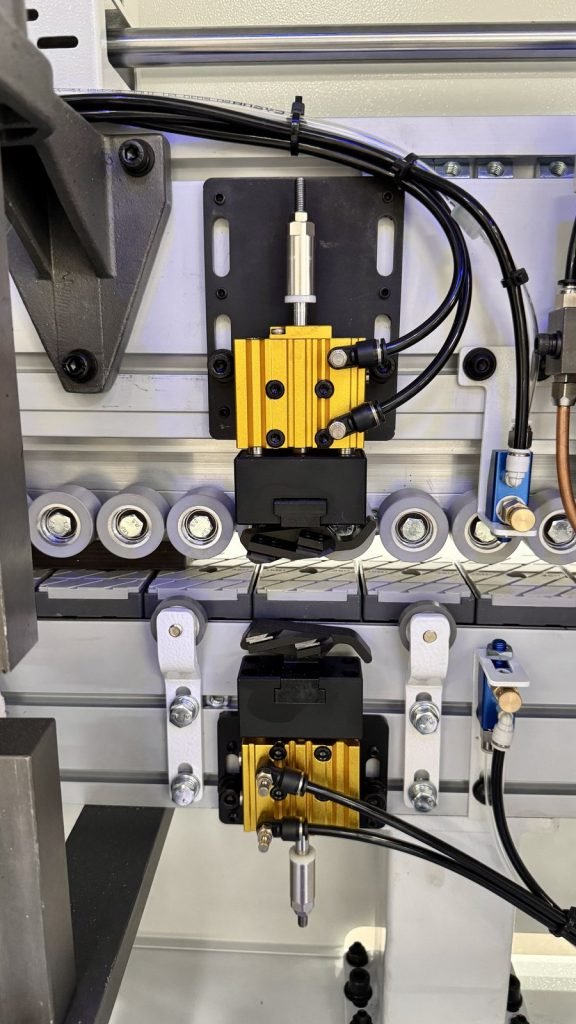

Flexible Scraping

Flexible Scraping

Flexible scraping removes steps and glue marks for smooth, flush edges.

Side Drilling

Side Drilling

The side drilling unit drills holes on the side of the panel, offering accurate positioning and neatly aligned holes.

Double Buffing

Double Buffing

Two independent buffing units, each designated for different glue colors, prevent cross-contamination of buffing wheels, ensuring clean, glossy edges without glue residue marks.

Technical Data技术数据

Specifications

Technical Parameters技术参数

Total power总功率
27 kW
Overall size外形尺寸
8600 × 930 × 1600 mm
Power supply电源
380 V
Feed speed进给速度
14–23 m/min
Panel spacing板材间距
≥500 mm
Working air pressure工作气压
0.6 MPa
Tape thickness封边带厚度
0.4–3.0 mm
Panel thickness板材厚度
9–60 mm
Minimum panel length最小板材长度
≥40 mm
Minimum panel width最小板材宽度
≥40 mm
Approximate weight约重
3.5 t
Lifting motor升降电机
0.37 kW

Production Uses生产应用

Applications

Panel Furniture Production板式家具生产

Automatic edge finishing for cabinets, wardrobes and other panel furniture components.用于橱柜、衣柜等板式家具部件的自动封边加工。

Panel and Edge-band Materials适用板材与封边材料

For melamine-faced board, MDF, plywood and multilayer solid-wood panels. Supports rolled PVC, ABS, acrylic and veneer edge-banding materials.适用于三聚氰胺板、中密度板、胶合板及多层实木板等木质板材;可使用 PVC、ABS、亚克力、木皮等卷式封边材料。
