XB-612S-H4

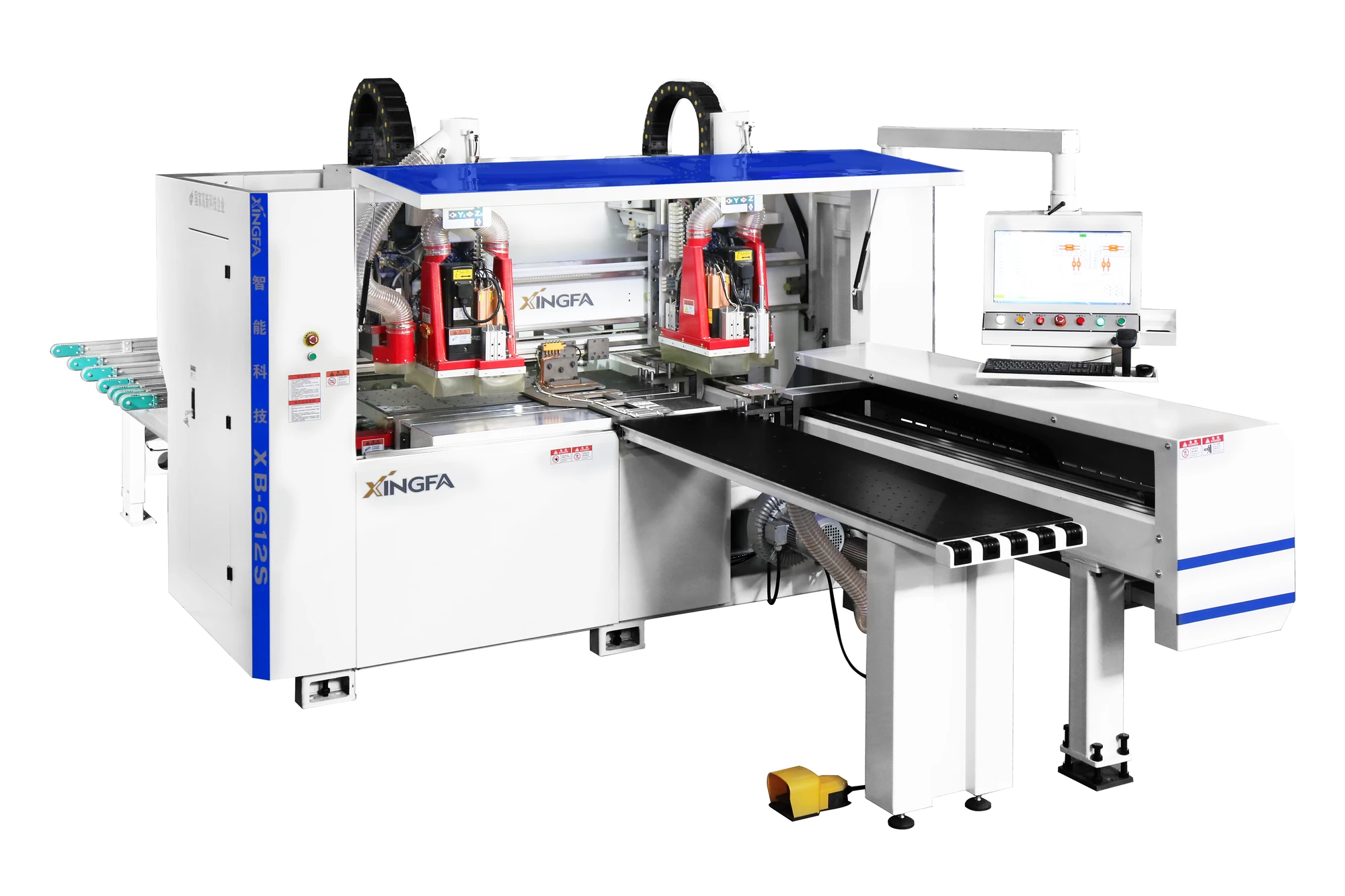

XB-612S-H4 CNC Drilling Machine
Heavy-duty twin upper drill configuration with upper/lower spindles and automatic tool changing.
- Upper drill groups上钻组数量
- 2
- Upper drilling positions / group每组上钻孔位
- 12 vertical + 8 horizontal12 垂直 + 8 水平
- Upper / lower spindle上 / 下主轴
- 3.5 kW / 3.5 kW
Machine Details设备细节
Features
Heavy-Duty Frame
The clamping beam is welded to the bed. The frame is heat-treated for structural stability.

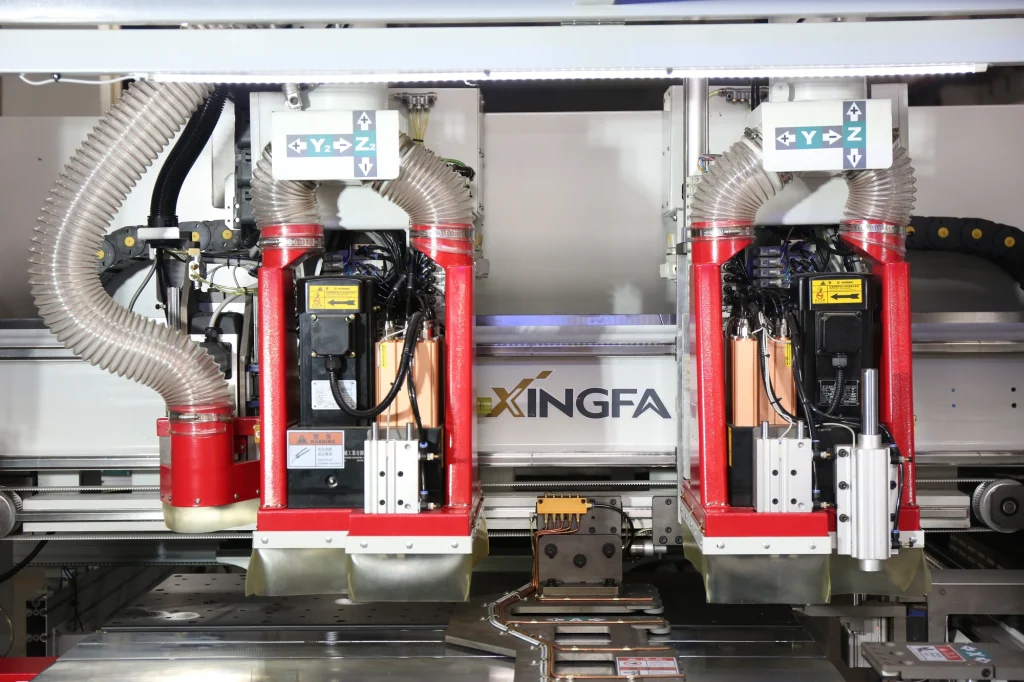

Twin Heavy-Duty Upper Drill Group
2 upper drill groups, each with 12 vertical and 8 horizontal drilling positions.

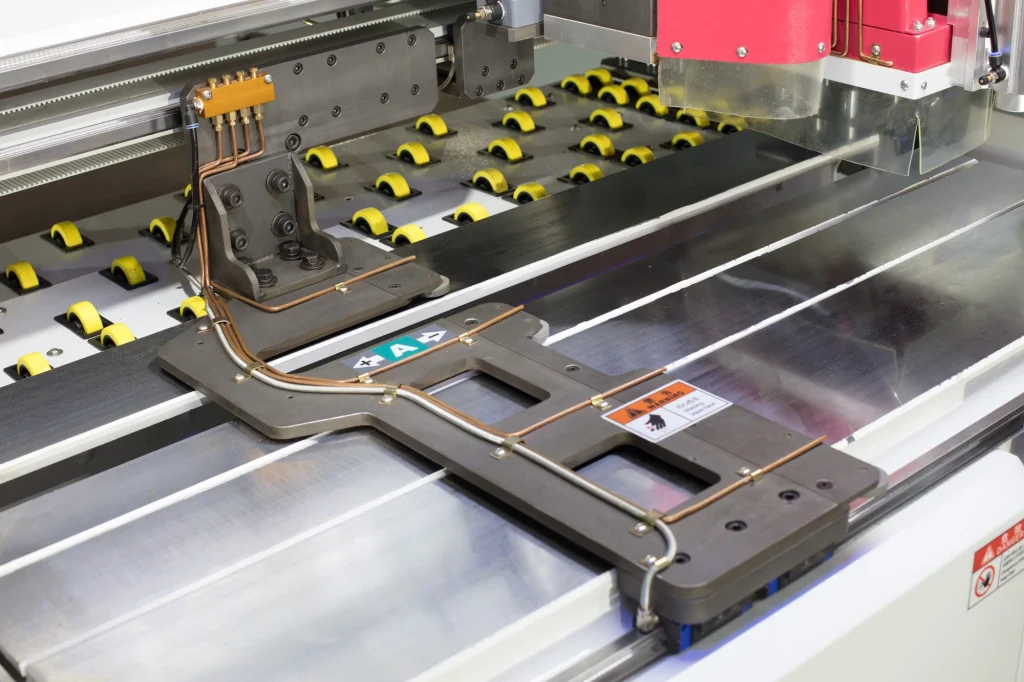

Side Aligning Device
Positions and clamps the panel from the side before drilling.
Air Floating Table
An air floating table with a phenolic-resin surface reduces panel movement resistance.

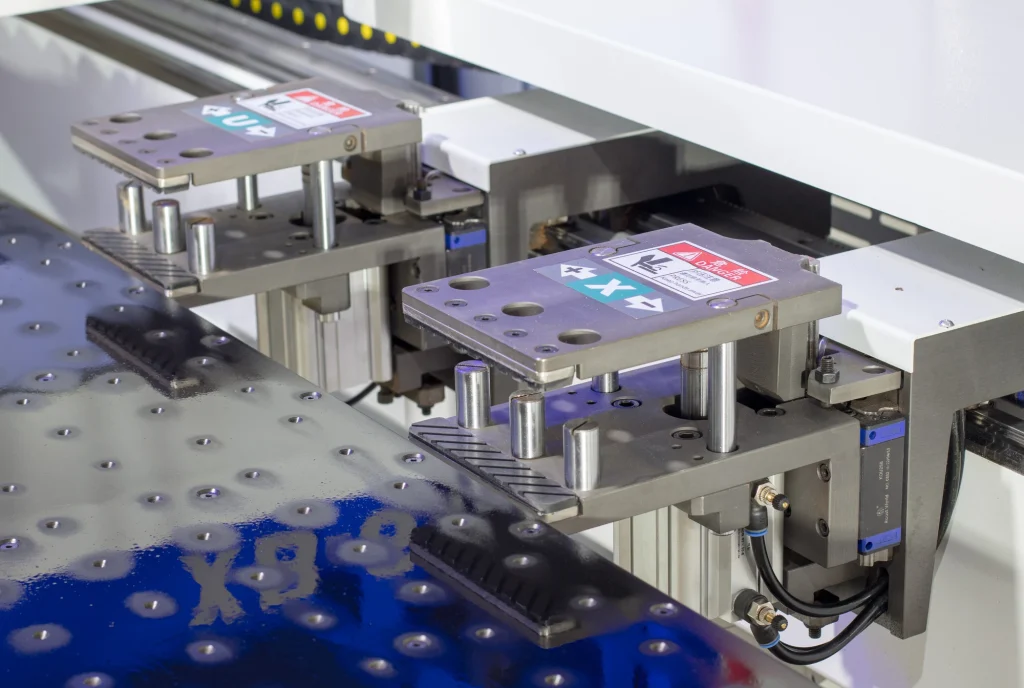

Intelligent Grippers
Dual clamps incorporate an air-blowing function to remove dust and chips from the panel.

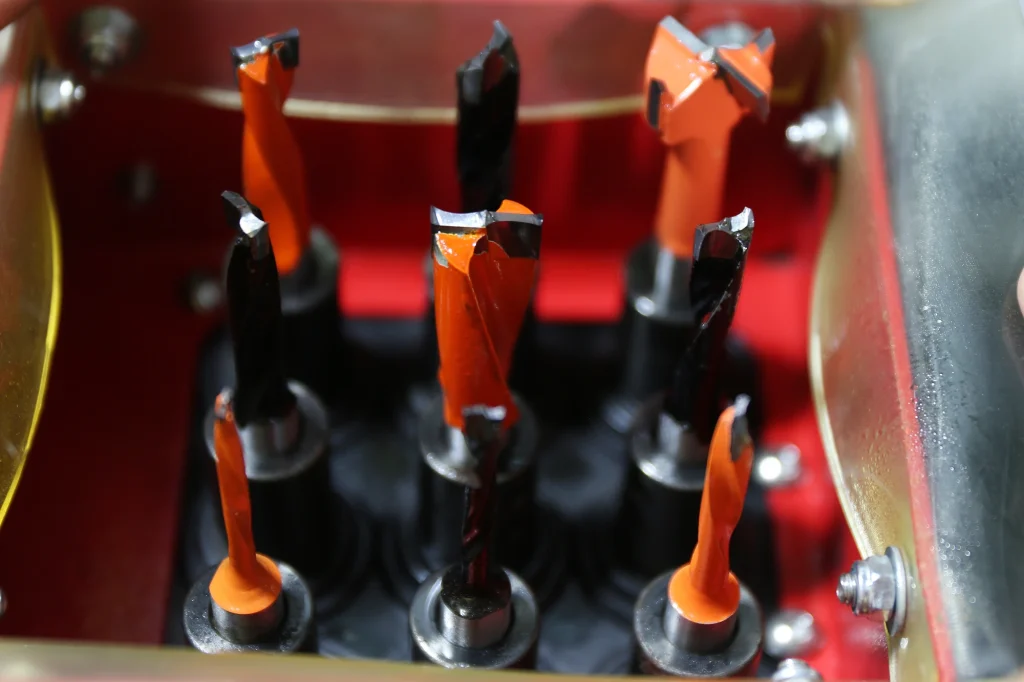

Heavy-Duty Lower Drill Group
Nine drill bits process holes on the underside of the panel.

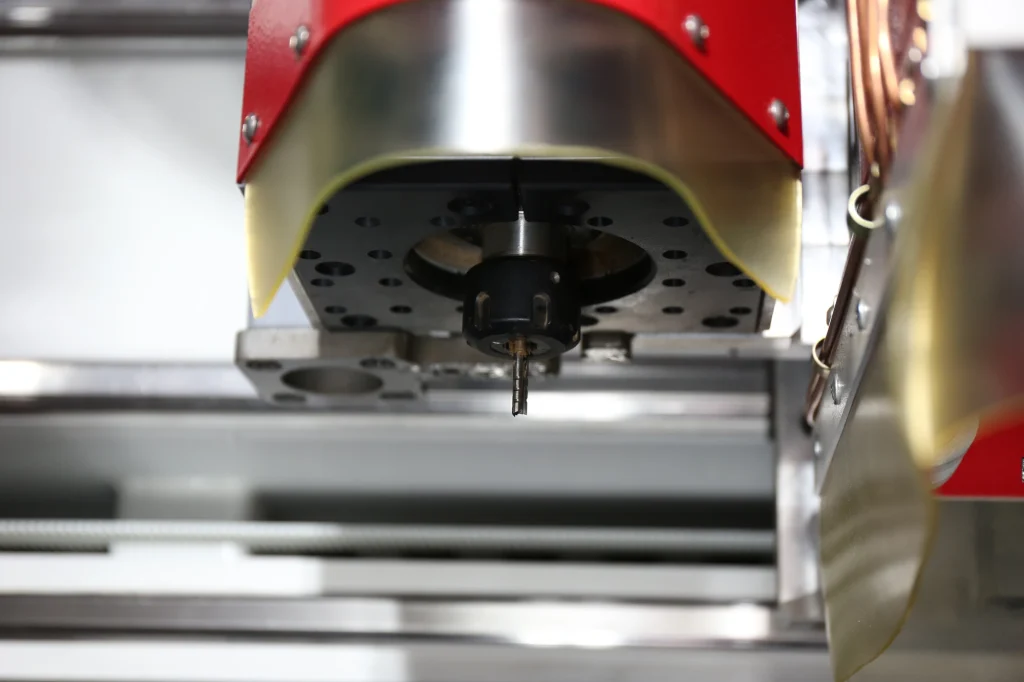

Upper & Lower 3.5 kW Spindles
Upper and lower 3.5 kW spindles perform grooving and milling on both panel surfaces.

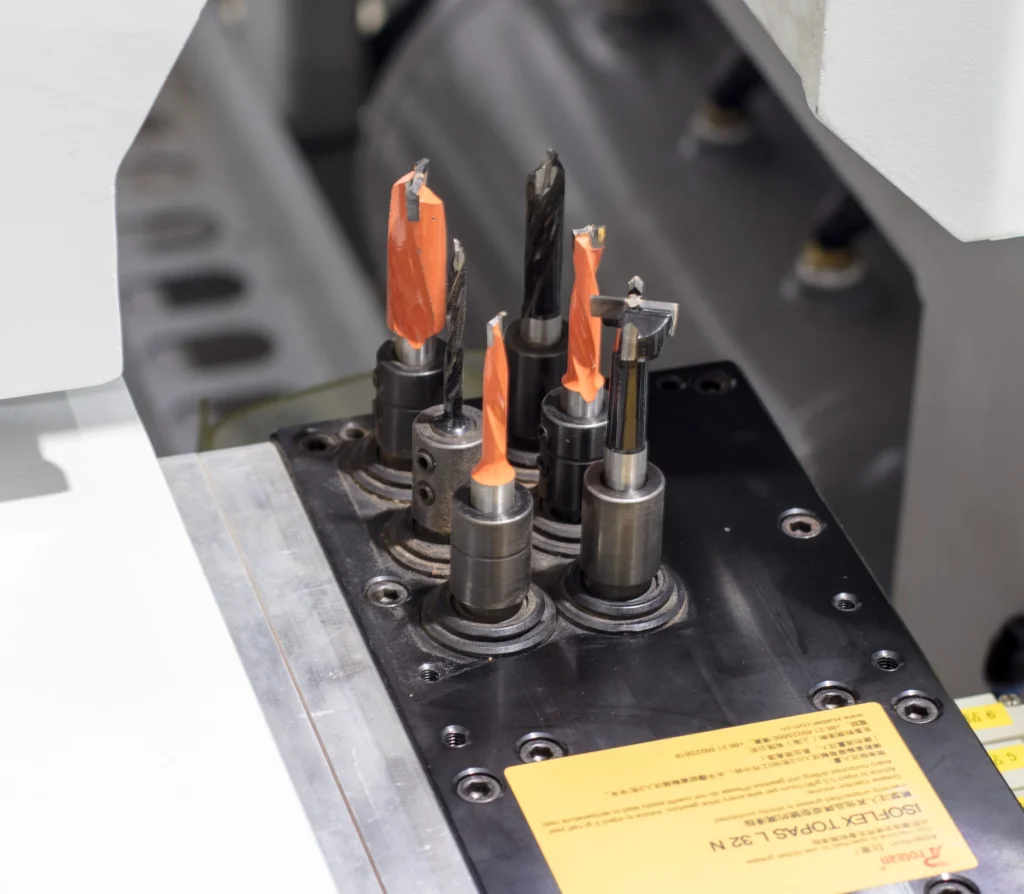

Automatic Tool Changing
Automatic tool switching supports continuous machining.
Rear Unloading Platform
A brush belt transfers the panel to the conveyor. The conveyor stops at the photoelectric sensor for manual removal.
Technical Data技术数据
Specifications
Configuration配置
- Upper drill groups上钻组数量
- 2
- Upper drilling positions / group每组上钻孔位
- 12 vertical + 8 horizontal12 垂直 + 8 水平
- Upper / lower spindle上 / 下主轴
- 3.5 kW / 3.5 kW
