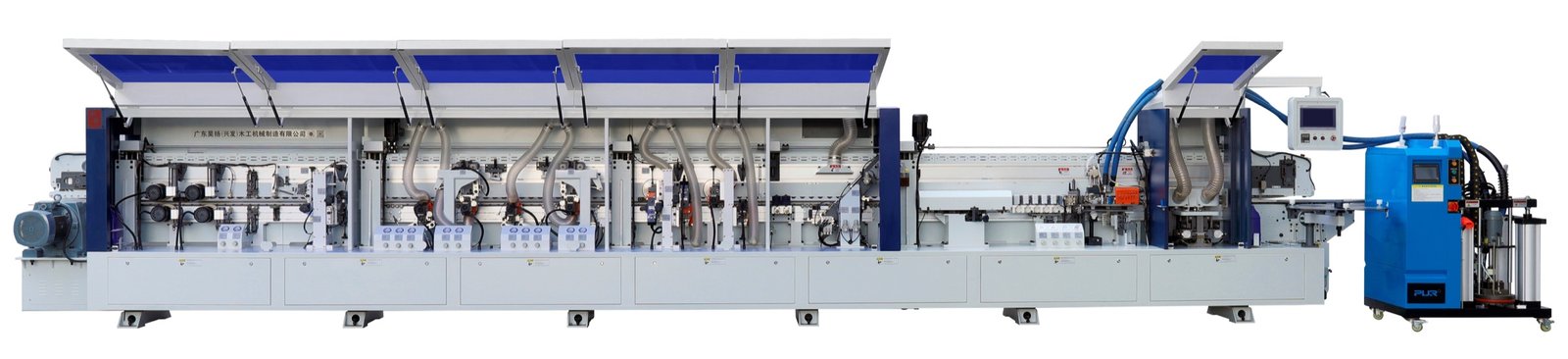

XA-8CTF
Aluminum-Wood Edge Banding Machine铝木一体封边机
Automatic edge banding configuration for aluminum-wood panels with PUR gluing and flexible finishing.
Request a QuoteMachine Details设备细节
Features
Pre-milling
Designed to mill away surface burrs, ensuring tight band contact and improved edge bonding performance.
Heating Lamp
Infrared lamp preheats panels for stronger bonding.
PUR Gluing
Equipped with a non‑clean quantitative glue pot, the two‑color PUR glue feeding system dispenses glue in precise doses, being eco‑friendly with no glue waste. Two types of glue can be switched effortlessly, improving efficiency and cutting labor costs. Its ultra‑fine glue application achieves a truly invisible glue line.
Combined Pressing Wheels
The combined pressing wheels apply pressure at multiple points to bond edge banding to aluminum honeycomb panel edges. The image illustrates a similar multi-wheel pressing assembly, showing the roller arrangement and pressure components.
End Cutting
Fast, stable front and rear edge trimming. The reinforced end-cutting unit minimizes panel impact during the trimming cycle, while the smooth vertical travel of the cutter head ensures consistent accuracy for every cut.
Repeated Pressing
Two pressing wheels are installed right after end cutting. Given the small contact area between the aluminum honeycomb panel and tape, these extra pressing wheels ensure the tape adheres tightly after end cutting.
Rough Trimming
Rough Trimming unit rapidly removes excess banding from panel edges, preparing a uniform surface for final finishing. Durable tools and stable guidance ensure clean, vibration-free cutting across varying thicknesses.
Fine Trimming
The fine‑trimming unit of the edge bander rounds off the upper and lower edges of the panel.
Four- Motor Corner Round
Aluminium honeycomb boards have fragile inner honeycomb structures that easily collapse under uneven cutting pressure. The 4-head tracking system traces the panel profile synchronously from four directions, applying balanced cutting force to prevent honeycomb crushing, corner sagging and edge chipping, for clean, high-quality corner trimming.
Scraping
Scraping unit eliminates the ripple marks caused by non-linear cutting motion during trimming, delivering smoother and cleaner top and bottom edges for improved surface flatness and tactile quality.
Flexible Scraping
Flexible scraping removes steps and glue marks for smooth, flush edges.
Double Buffing
Two independent buffing units, each designated for different glue colors, prevent cross-contamination of buffing wheels, ensuring clean, glossy edges without glue residue marks.
Technical Data技术数据
Specifications
Technical Parameters技术参数
- Total power总功率
- 28 kW
- Overall size外形尺寸
- 10600 × 1000 × 1700 mm
- Power supply电源
- 3 PH / 380 V
- Feed speed进给速度
- 14–23 m/min
- Panel spacing板材间距
- ≥500 mm
- Working air pressure工作气压
- 0.6 MPa
- Tape thickness封边带厚度
- 0.4–3.0 mm
- Panel thickness板材厚度
- 10–60 mm
- Minimum panel length最小板材长度
- ≥120 mm
- Minimum panel width最小板材宽度
- ≥60 mm
Production Uses生产应用
Applications
Panel Furniture Production板式家具生产
Automatic edge finishing for cabinets, wardrobes and other panel furniture components.用于橱柜、衣柜及其他板式家具部件的自动封边精整。
