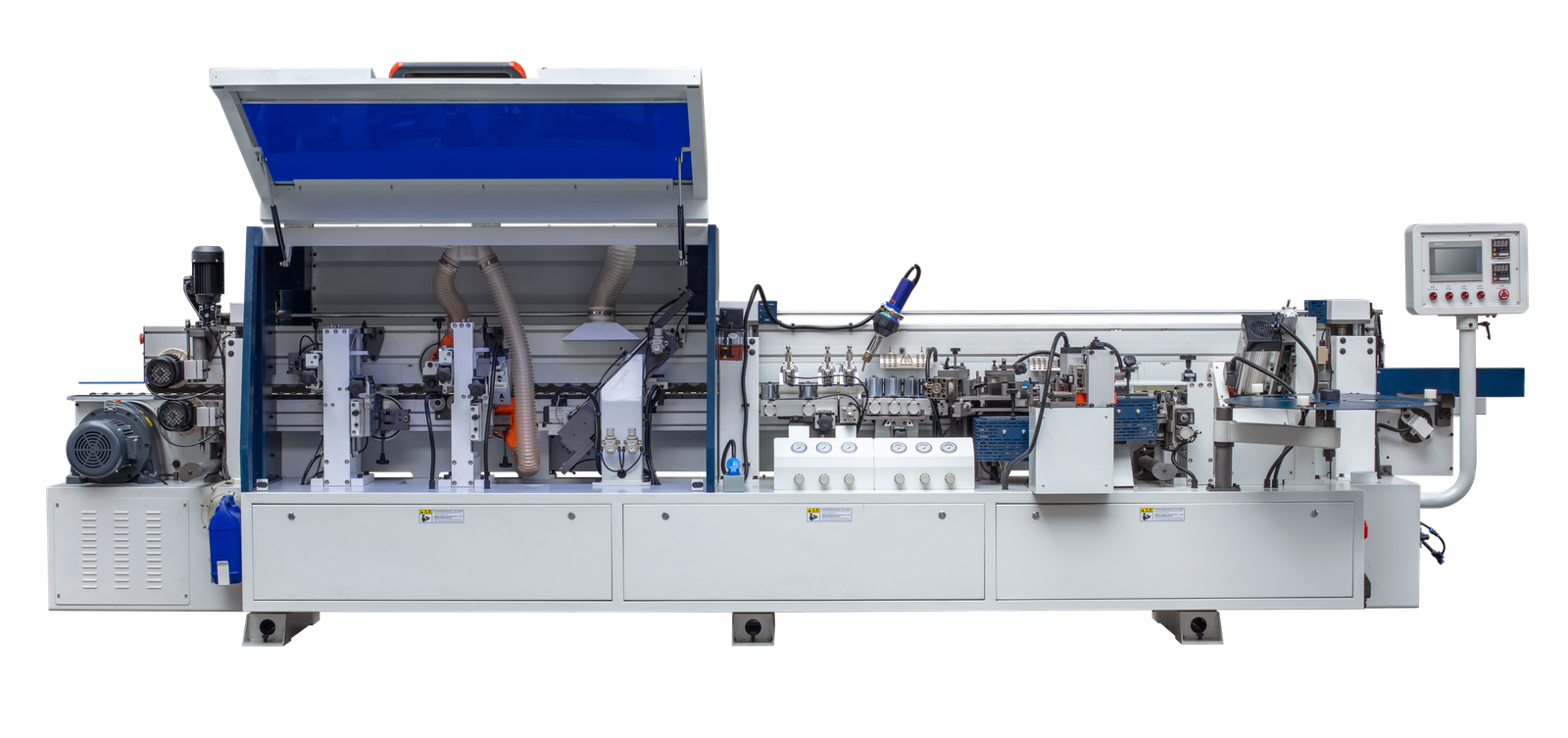

XA-H5

45-Degree Edge Banding Machine45 度斜边封边机

Specialized edge banding machine for 45-degree beveled edges, combining bevel forming, gluing and finishing.

Request a Quote

Machine Details设备细节

Features

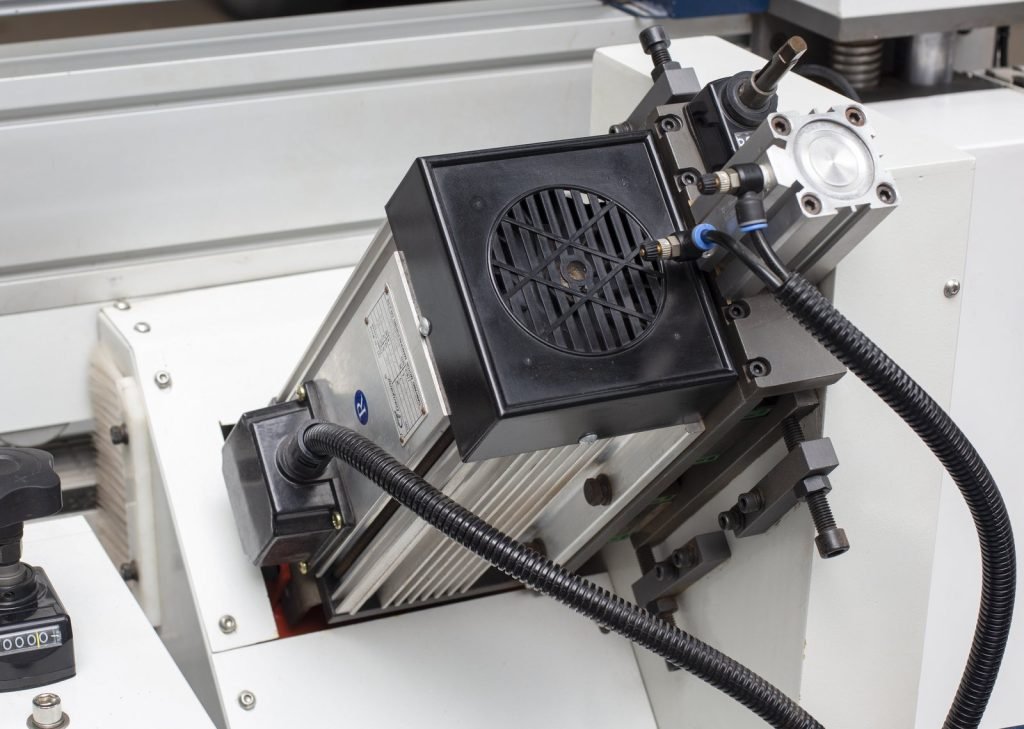

Beveled Edge Pre-milling

Beveled Edge Pre-milling

45°bevel pre-milling trims burrs and corrects bevel edges, ensuring seamless and flawless 45°edge banding results.

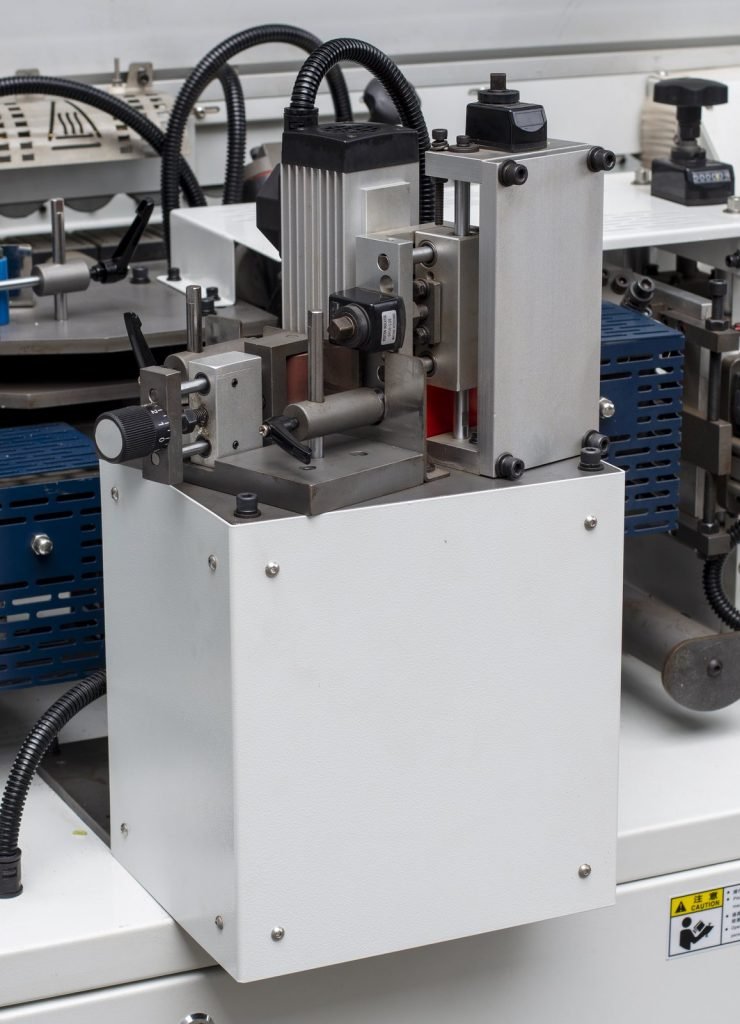

Edge Band Grooving

Edge Band Grooving

Edge‑band grooving unit pre‑cuts grooves on the edge tape to improve its flexibility. The tape bends easily to fit the 45° bevel and gets ready for subsequent pressing, preventing cracking during bending.

Heating Lamp 1

Heating Lamp 1

The infrared heating lamp preheats the panel to improve bonding strength.

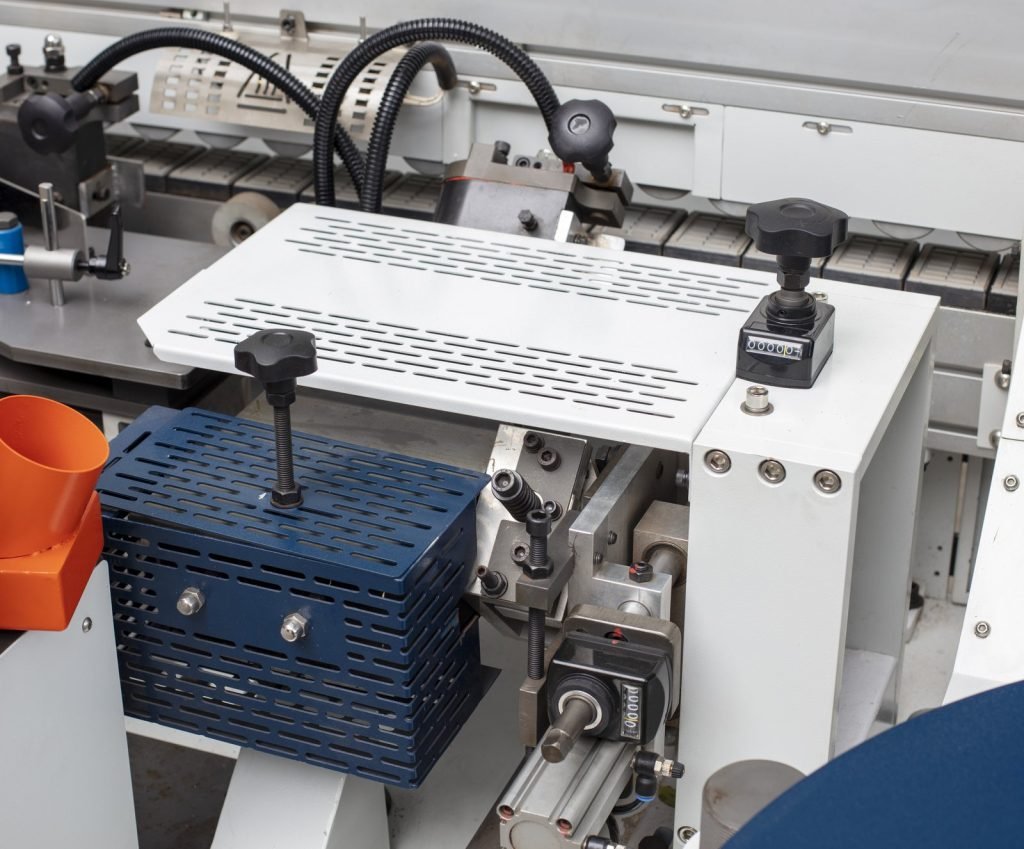

Beveled Edge Gluing

Beveled Edge Gluing

Precise bevel gluing with even coverage for firm adhesion.

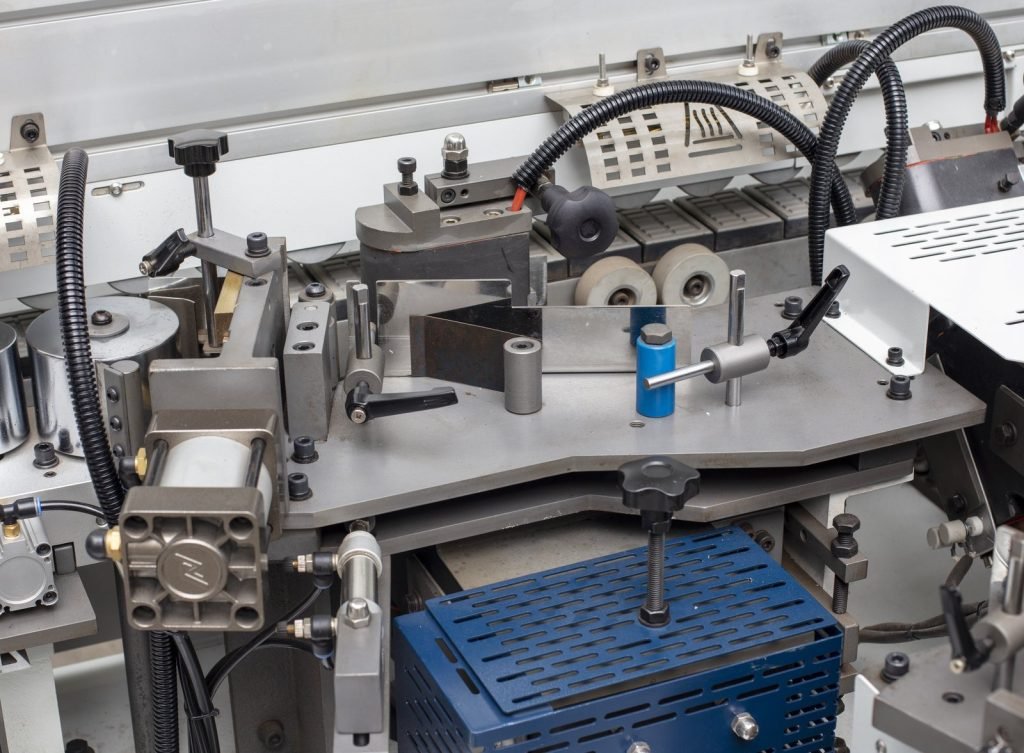

Straight Edge Gluing

Straight Edge Gluing

Even straight-edge gluing with adjustable dosage for strong bonding.

Heating Lamp 2

Heating Lamp 2

The infrared heating lamp preheats the panel to improve bonding strength.

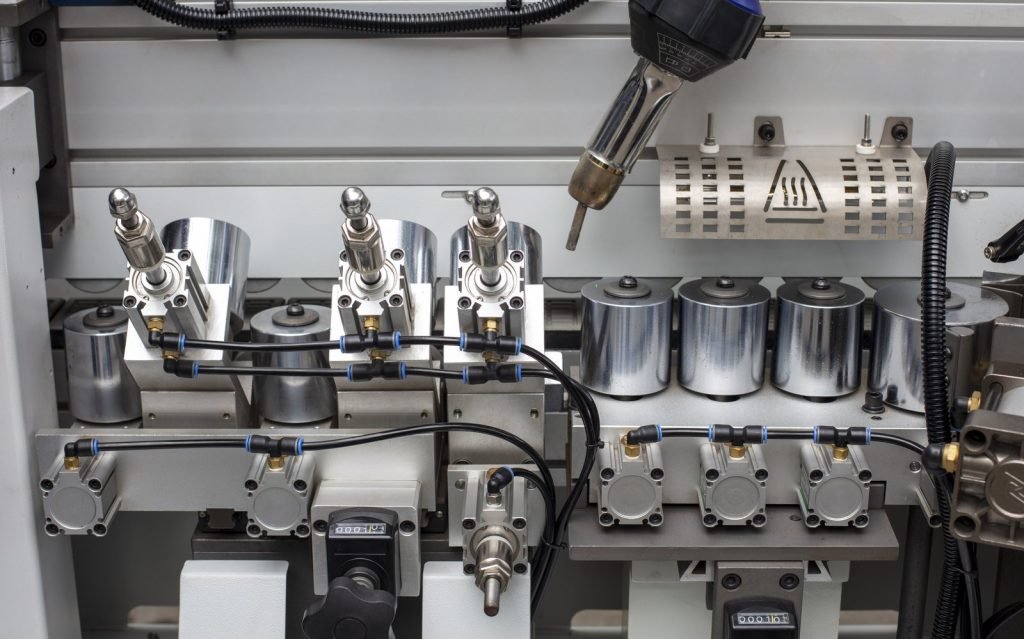

Straight & Bevel Edge Pressing

Straight & Bevel Edge Pressing

It evenly compresses the edge band for tight bonding with the panel. Effectively preventing edge warping, glue peeling and hollow gaps, it achieves firm adhesion and neat, smooth edge finishing.

Fine Trimming

Fine Trimming

The fine‑trimming unit of the edge bander rounds off the upper and lower edges of the panel.

End Cutting

End Cutting

Fast, stable front and rear edge trimming. The reinforced end-cutting unit minimizes panel impact during the trimming cycle, while the smooth vertical travel of the cutter head ensures consistent accuracy for every cut.

Scraping

Scraping

Scraping unit eliminates the ripple marks caused by non-linear cutting motion during trimming, delivering smoother and cleaner top and bottom edges for improved surface flatness and tactile quality.

Buffing

Buffing

Buffing unit with cloth buffing wheels quickly polishes the edges, removing fine marks and enhancing surface gloss.

Technical Data技术数据

Specifications

Machine data设备参数

Total power总功率
19 kW
Overall size设备尺寸
6300 × 930 × 1600 mm
Feed speeds进料速度
12 / 16 / 20 m/min
Three-phase supply三相电源
380 V / 50 Hz

Processing range加工范围

Minimum panel width最小板材宽度
≥60 mm
Minimum panel length最小板材长度
≥120 mm
Panel thickness板材厚度
10–60 mm
PVC tape thicknessPVC封边带厚度
0.6–1.0 mm
Bevel angle斜边角度
45° (fixed)45°(不可调)

Production Uses生产应用

Applications

Panel Furniture Production板式家具生产

Automatic edge finishing for cabinets, wardrobes and other panel furniture components.用于橱柜、衣柜及其他板式家具部件的自动封边精整。
